Low Profile L Bracket

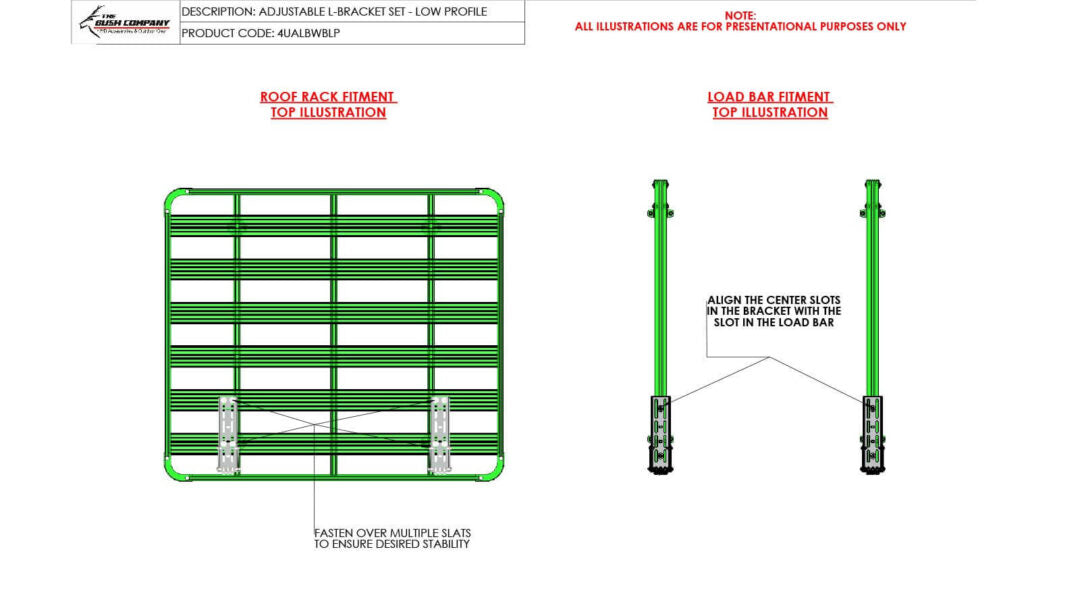

The Low Profile L Bracket are sold in pairs and are perfect for mounting your Bush Company Outhouse Ensuite to a roof rack or load bars.

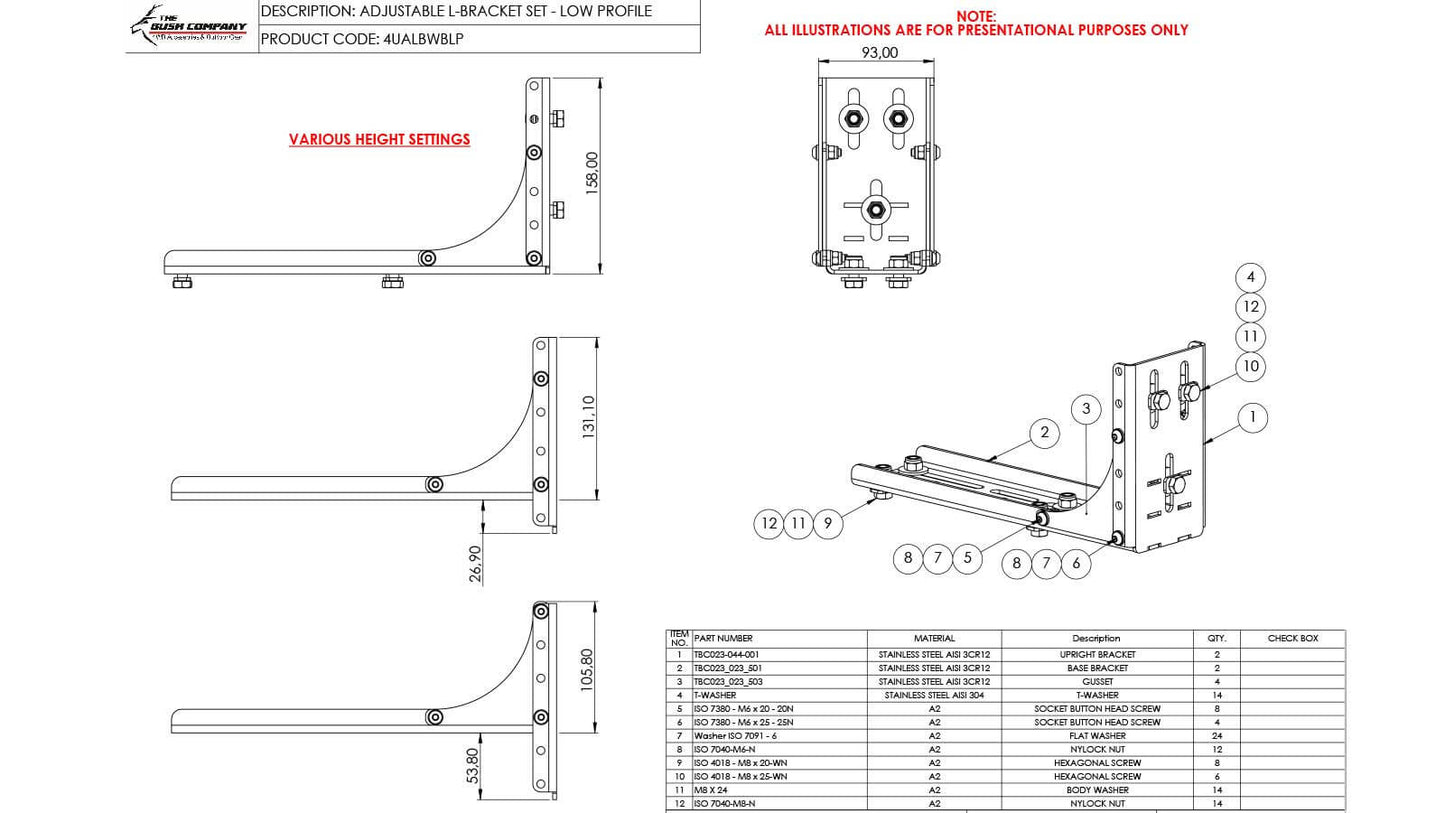

The bottom arm which attaches to the load bar or roof-rack is 310mm (12 ¹³/₆₄”) long and 81mm (3 ³/₁₆”) wide with a range of holes and slot options for attachment, this longer arm is ideal for fitment to roof racks with wider slats where the attachment points are further apart such as a Rhino Pioneer Platform Rack. The vertical arm of the brackets can be configured in three positions enabling the height above the rack to be adjusted from either 158mm (6 ⁷/₃₂”), 131mm (5 ⁵/₃₂”) or 106mm (4 ¹¹/₆₄”).

The bracket is made from stainless steel and has been CNC laser cut and folded and finished in a durable powder coat finish. The brackets have heavy duty gussets in the corner to withstand the rigours of off-road travel, when fitted the gusset of the bracket must be facing upwards and not be installed further out than the edge of the rack. The brackets are supplied with a complete set of stainless steel pan head and hex bolts and nyloc nuts for assembly.
