REDARC
DUAL BATTERY WINCH KIT
DUAL BATTERY WINCH KIT
SKU:
*Free Shipping to Lower 48.
REDARC’s DUAL BATTERY WINCH KIT is the perfect onboard system for people wanting to charge auxiliary batteries and power their winch when on the tracks.
This dual battery setup offers everything you need if you’re looking to run things like fridges, inverters and other 12v devices, you just need to add a suitably rated 200amp fuse kit.

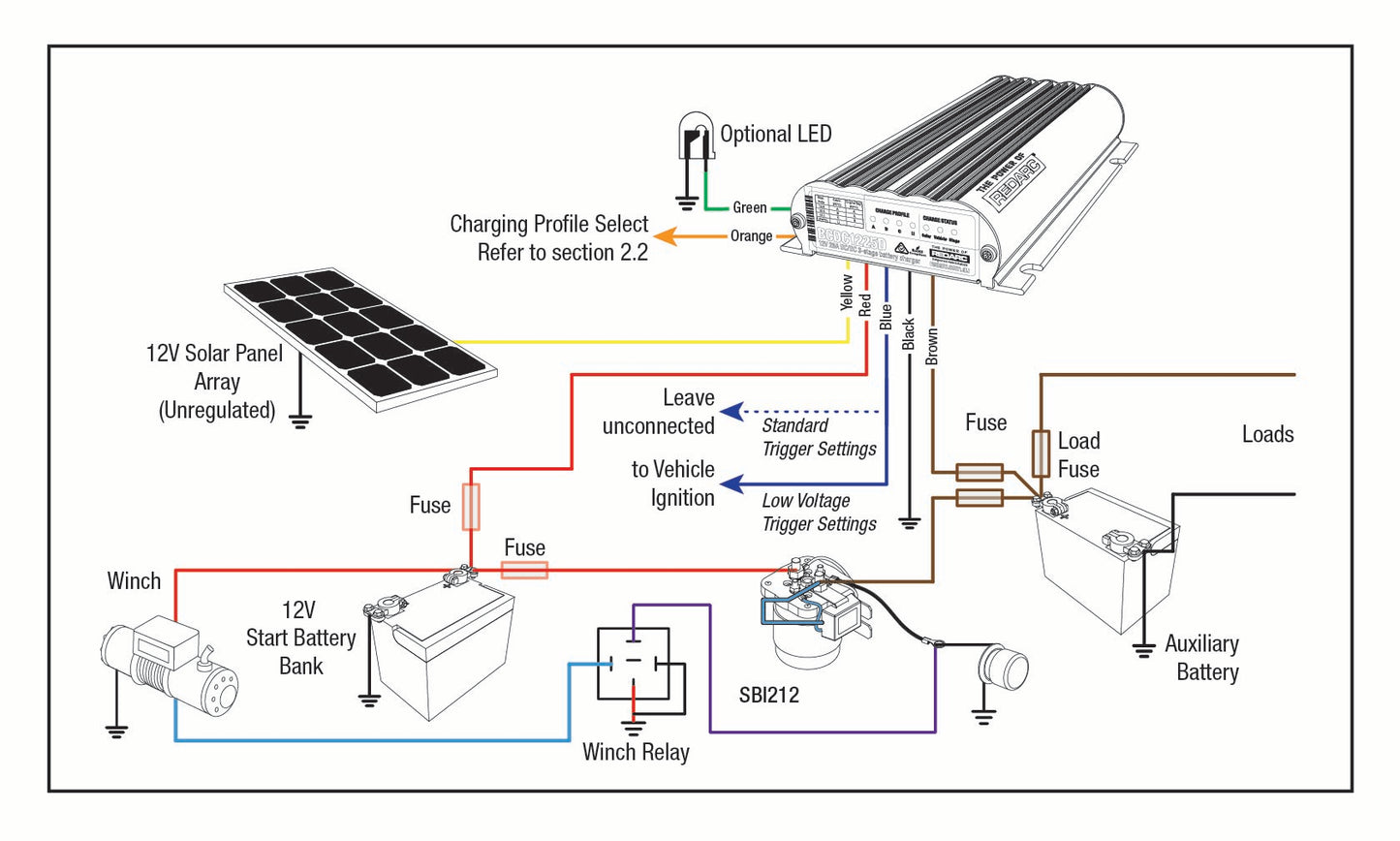

Following this helpful wiring diagram during installation shows you how you can use the system to effectively power your winch without draining your start battery.
The 25amp BCDC will help to charge your batteries (60 to 200Ah*) while you’re on the move, and features green power priority if you want to add a solar blanket or portable solar panel down the track to help you harness the sun’s energy to get batteries back to 100% charge when you’re setup at camp.
WHAT’S INSIDE?

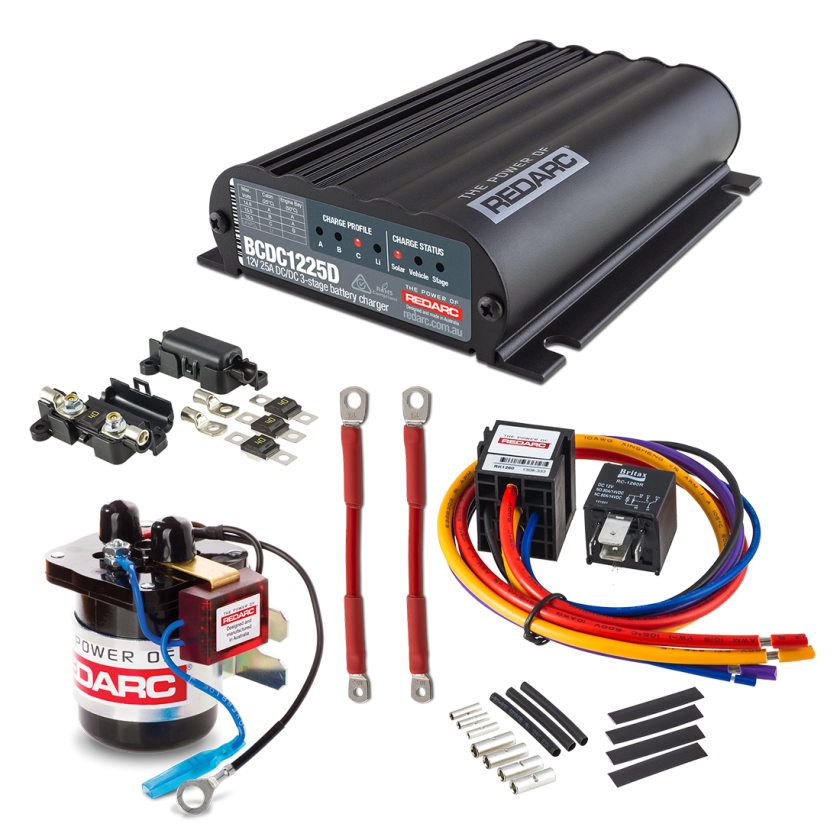

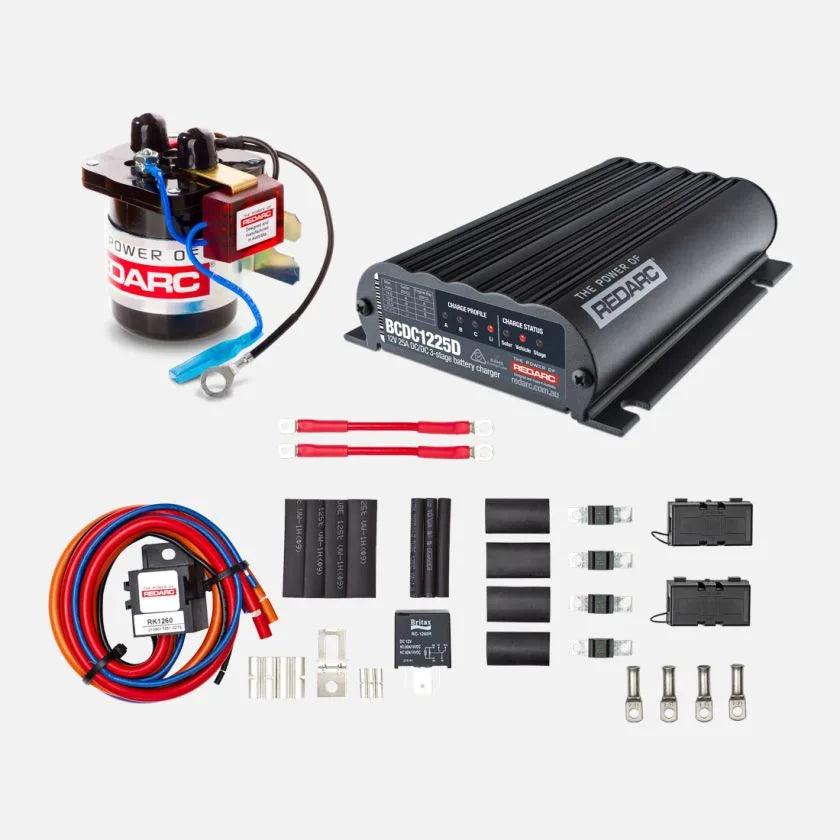

This winch-ready dual battery charging kit has everything you may need to install into your vehicle before taking off on your next weekend getaway or camping trip.
THESE INCLUDE:
- A 25amp DC to DC battery charger (BCDC1225D) to connect and charge your batteries
- A 40amp fuse kit (FK40) required for self-installation
- A smart battery isolator (SBI212) to link the batteries to power your winch
- 2 x fuse to battery cables for easy installation
- A 60amp relay kit to trigger the isolator to help provide power to your winch
*Check battery specifications for current limits
BRAND | REDARC |
---|---|
BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
NOMINAL OUTPUT POWER | 375W (BCDC) |
BLUETOOTH COMPATIBLE | No |
SUITABLE FOR 12V SYSTEMS | Yes |
SUITABLE FOR 24V SYSTEMS | Yes |
SOLAR INPUT VOLTAGE | 9 - 32V |
MPPT SOLAR REGULATOR | Yes |
CABIN/ CANOPY INSTALL | Yes |
TRAILER INSTALL | Yes |
ENGINE BAY INSTALL | Yes |
MAX. CHARGING VOLTAGE | 15.3V |
