DS95 DROP SLIDE™ WITH TABLE

LIGHTER...STRONGER...SAFER...SMARTER

*click here to find the fridge application chart for fridge compatibility*

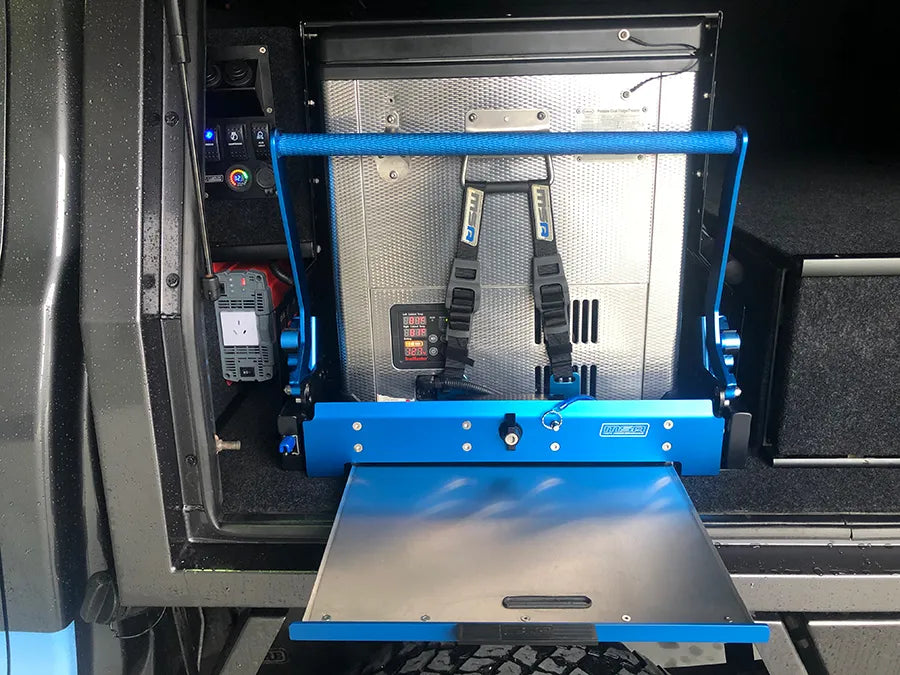

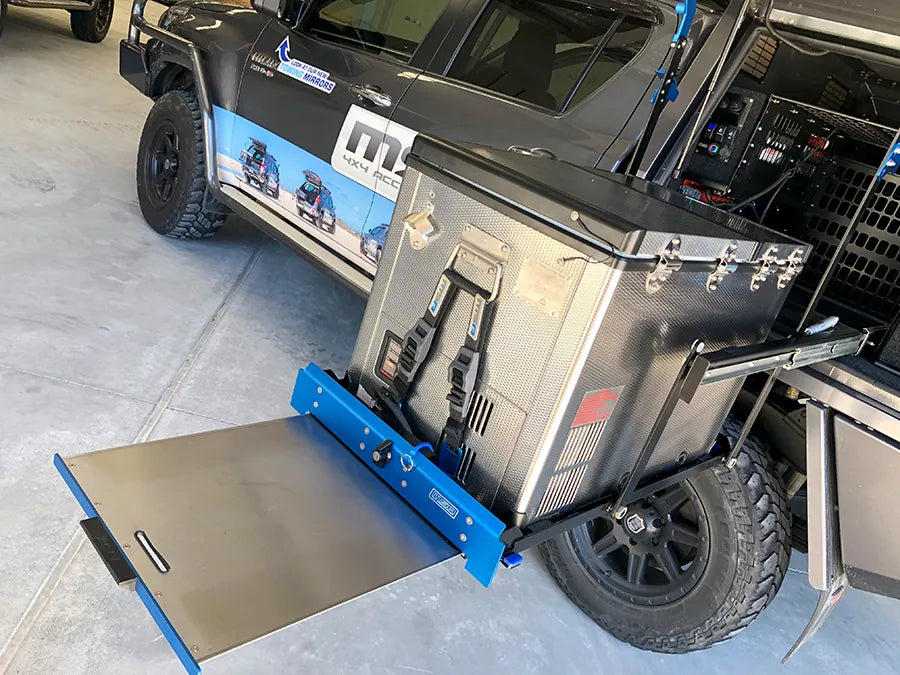

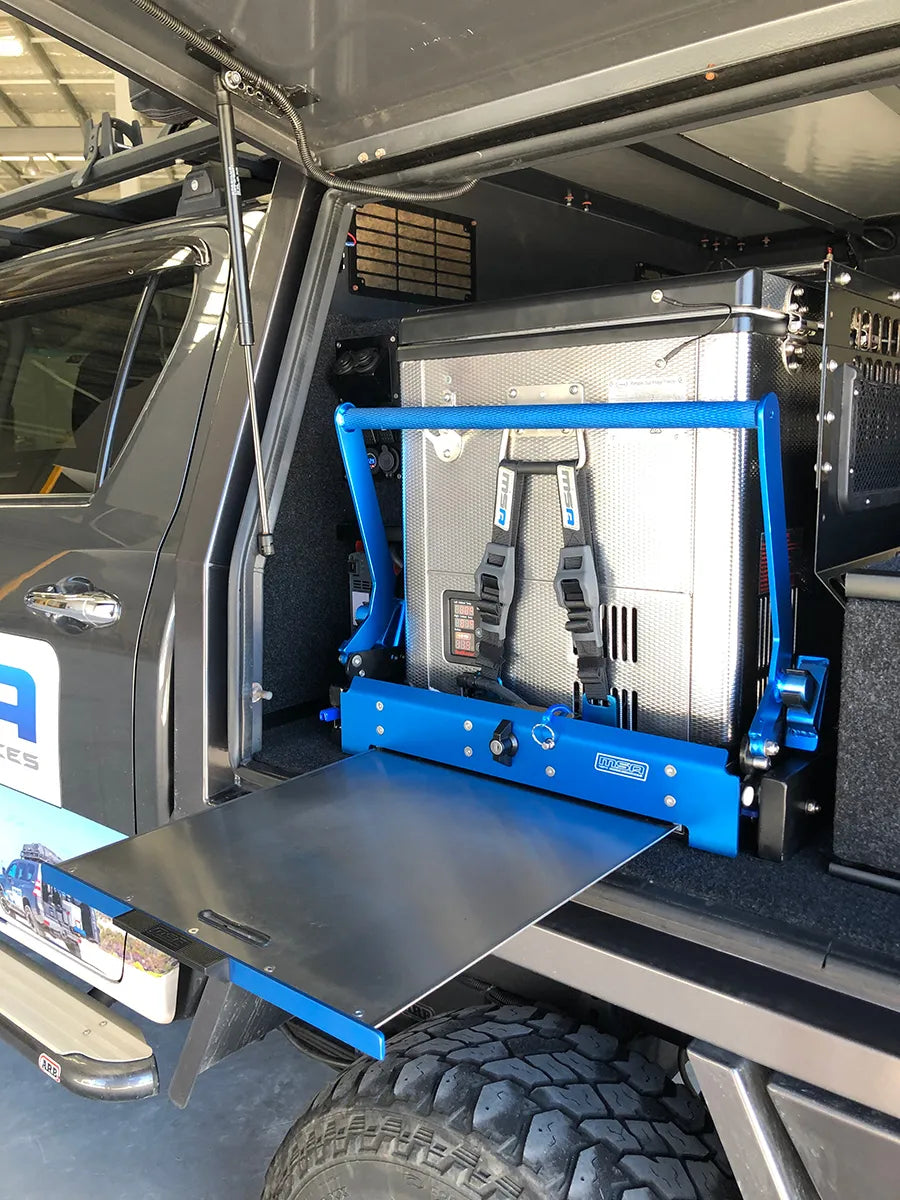

MSA 4X4 has taken it up a notch with the MSA 4X4 Drop Slide™ with table. This patented Drop Slide™ comes with a 316 stainless-steel pull-out table that can hold up to 7.5kg.

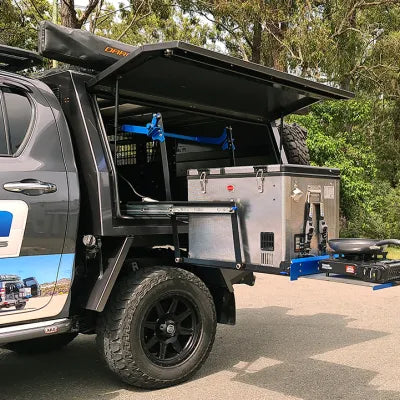

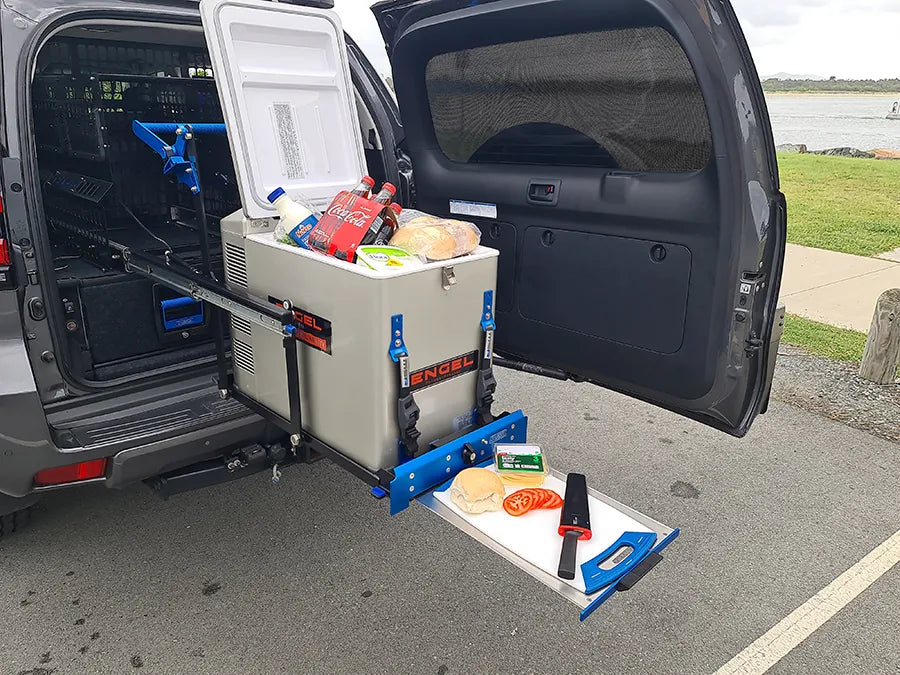

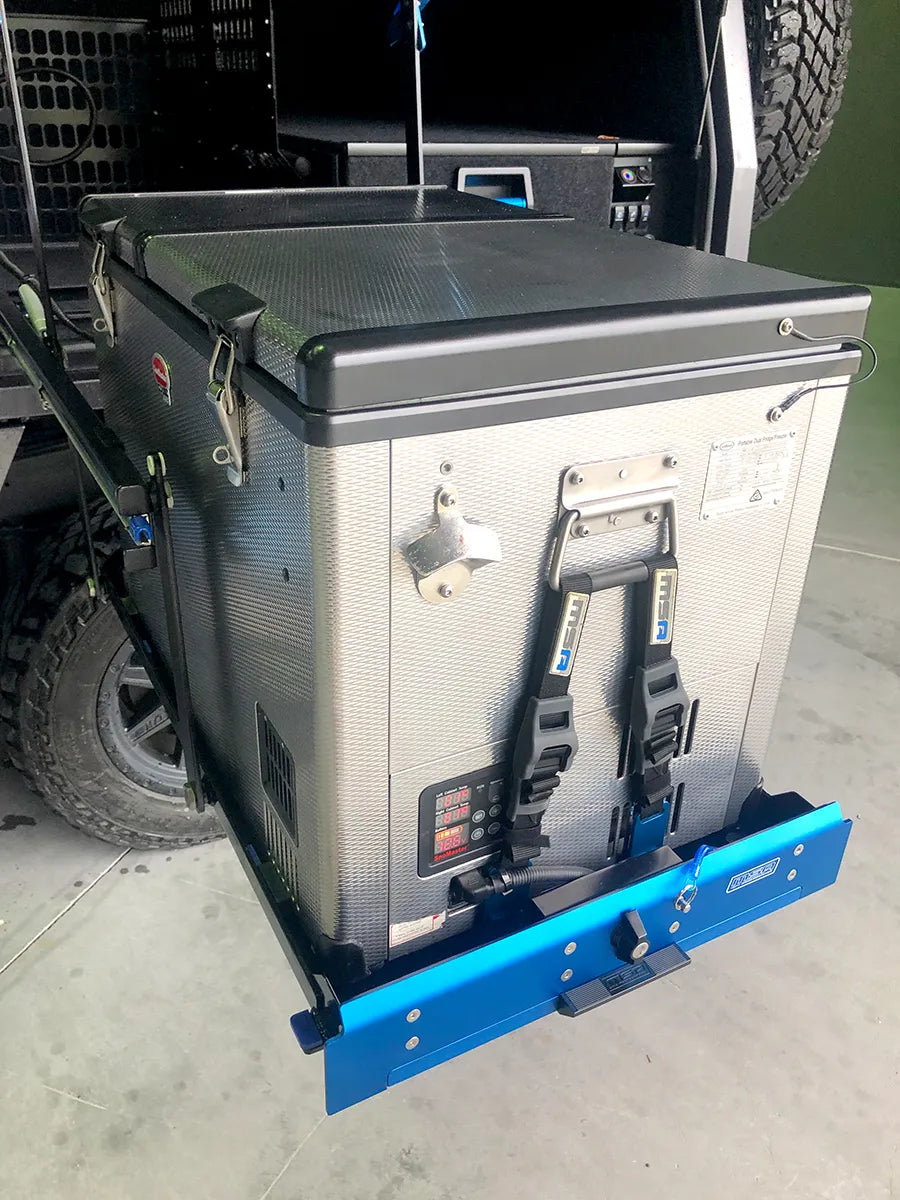

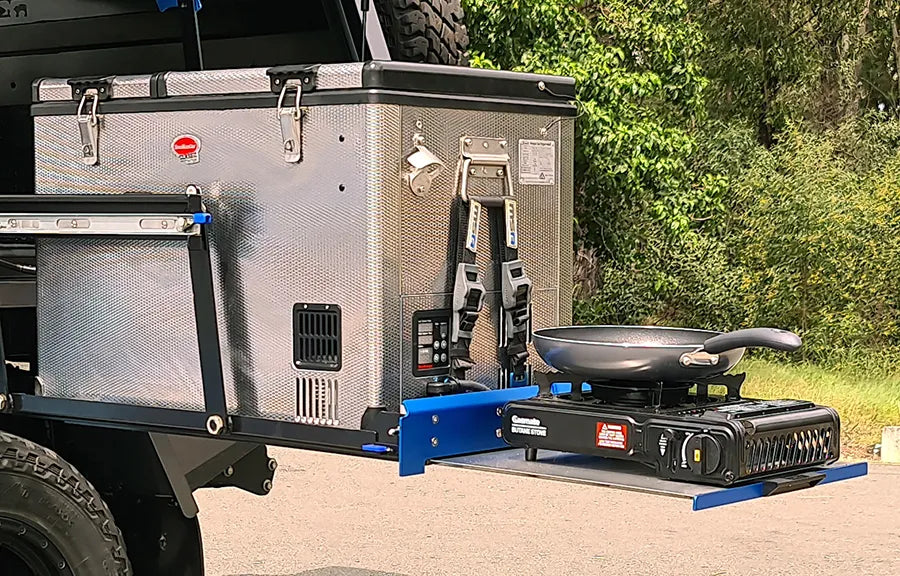

Perfect for preparing a quick meal for the family when on the road. The Drop Slide™ lowers 30 centimetres while extending over the tailgate of the vehicle, allowing easy access to a fridge, toolbox or generator. The slide remains in a horizontal position when lowing, avoiding any contact with the vehicle. The Drop Slide™ with Table features the unique, easily recognisable, MSA 4X4 blue anodised faceplate. Creating a tough, durable and sleek finish, it is sure to stand out from its competitors. The Slide also has a powder-coated steel frame construction for more durability when in use. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Features:

• Slide-out 316 stainless steel table

• Compact size

•  Easy install

•  Lock-in and lock-out safety system

•  Stainless steel and blue anodised aluminium fittings

•  Powder-coated steel frame construction

• Travel lock and key

•  Anodised blue faceplate

Includes:

• Screws for 1/2" Plywood Mounting
• FTD25 4 Piece Fridge Tie-Down Kit

• Pre-drilled tray hole

• MSA 4X4 Lifetime Guarantee

Note:

•  5 sizes available to suit a variety of applications
• MSA 4X4 Fridge Barriers available for all models

Weight	60kg
Freight Dimensions	1110×740×200
Fridge Tray1	955×560
Slide Length Closed2	1020+20
Slide Length Open3	2170+20
Overall Width4	670+20
Handle Width5	610
Drop6	300
Mount to Base	35
Max Set Back	150
Table Travel Distance7	420
Table Width8	400
Gas Strut	1000 N Slow
(all measurements displayed are in mm)
