DS50 SIDE DROP SLIDE™

LIGHTER...STRONGER...SAFER...SMARTER

*click here to find the fridge application chart for fridge compatibility*

This model is designed for specific applications where the Drop Slide™ is better suited sideways, as the vehicle does not have enough depth for a standard Drop Slide™ to be installed.

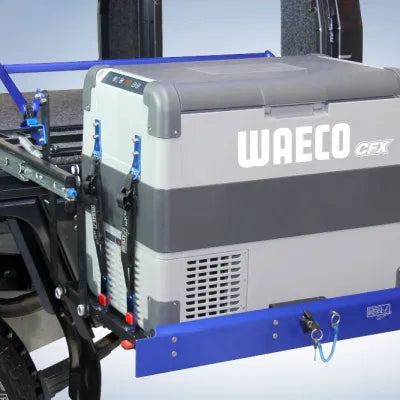

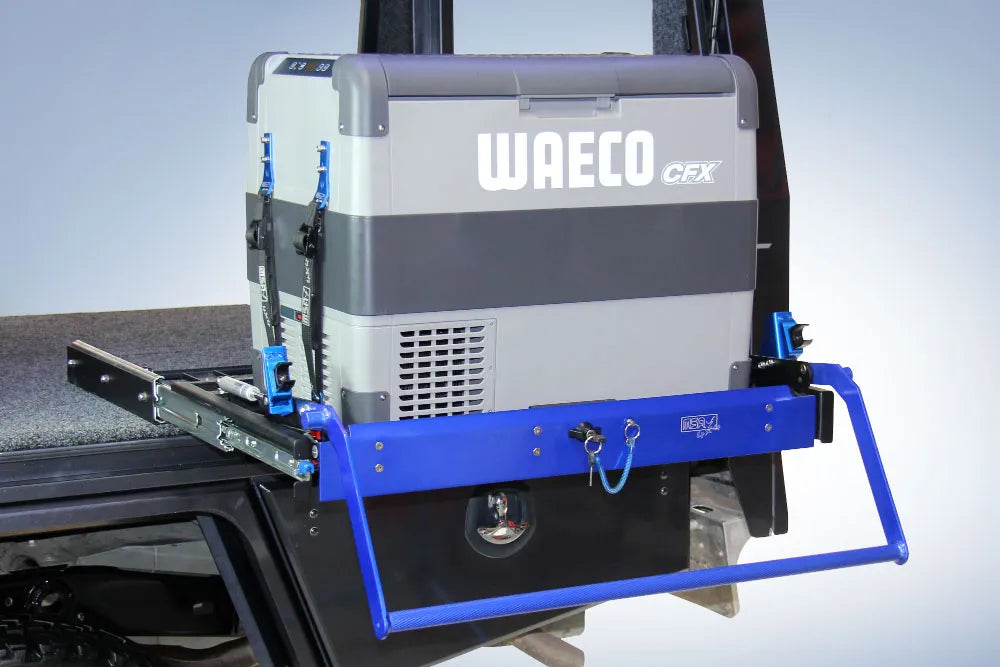

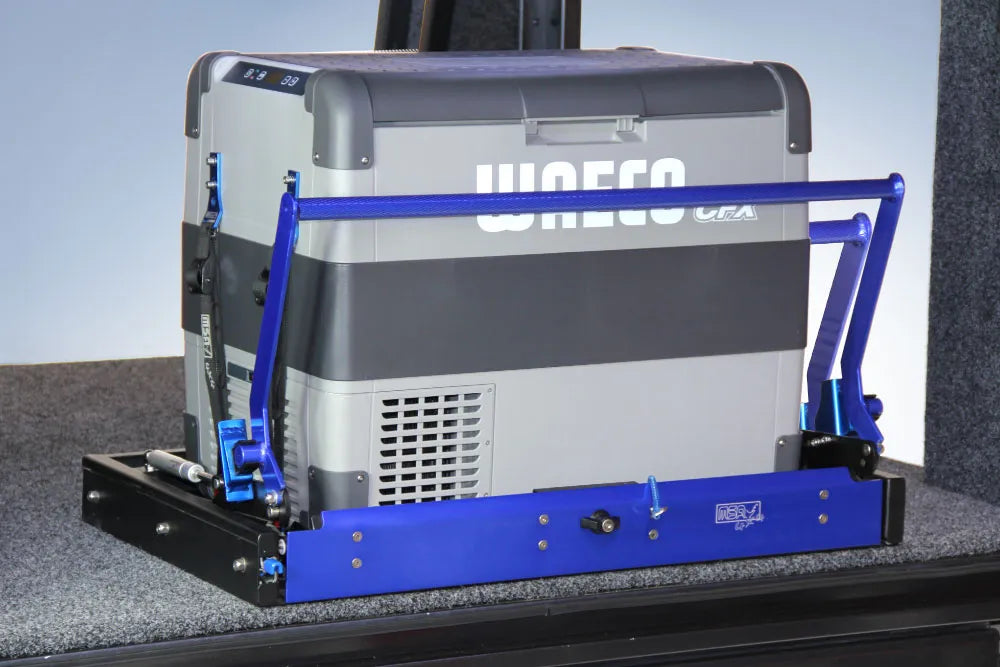

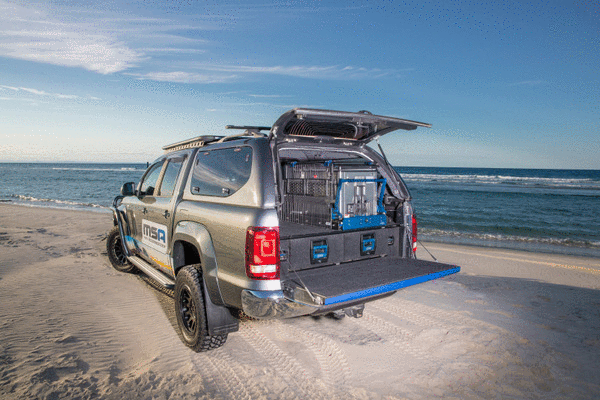

The MSA 4X4 Patented Side Drop Slide™ is the perfect addition to a 4WD set-up. Offering unrestricted access at a safe and convenient level to a fridge, toolbox or generator. The Side Drop Slide™ includes a slimline handle allowing for the Slide to lower 30 centimetres while extending over the vehicle’s tailgate. The platform remains perfectly horizontal and avoids any contact with the vehicle. A blue anodised faceplate creates a tough, durable and easily recognisable feature, that is unique to all MSA 4X4 Slides. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Side Drop Slide™ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Features:

• Compact size

• Easy install

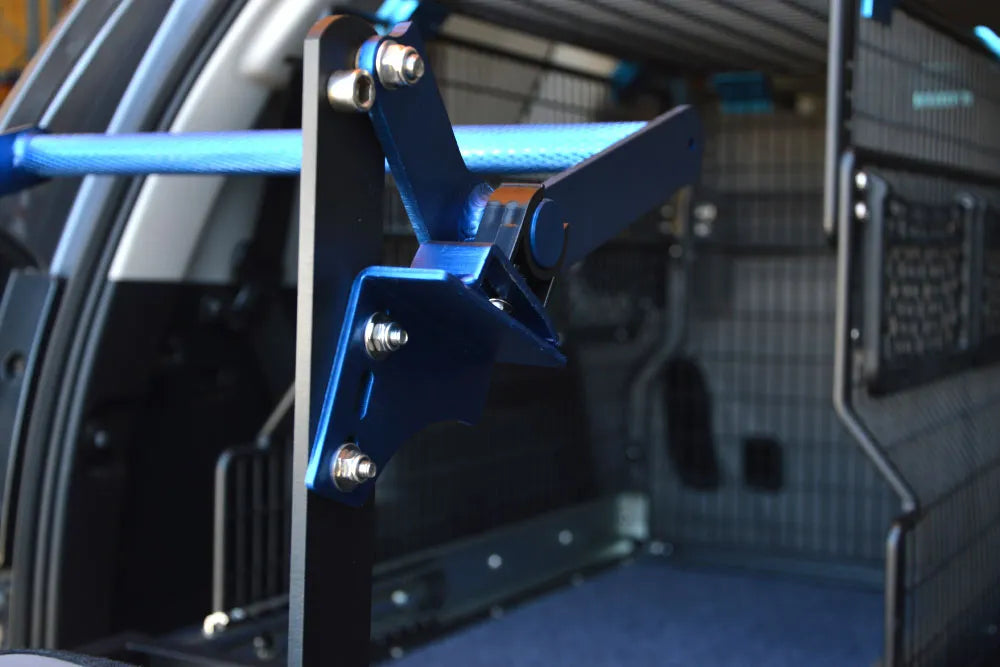

•  Lock-in and lock-out safety system

•  Stainless steel and blue anodised aluminium fittings

•  Powder-coated steel frame construction

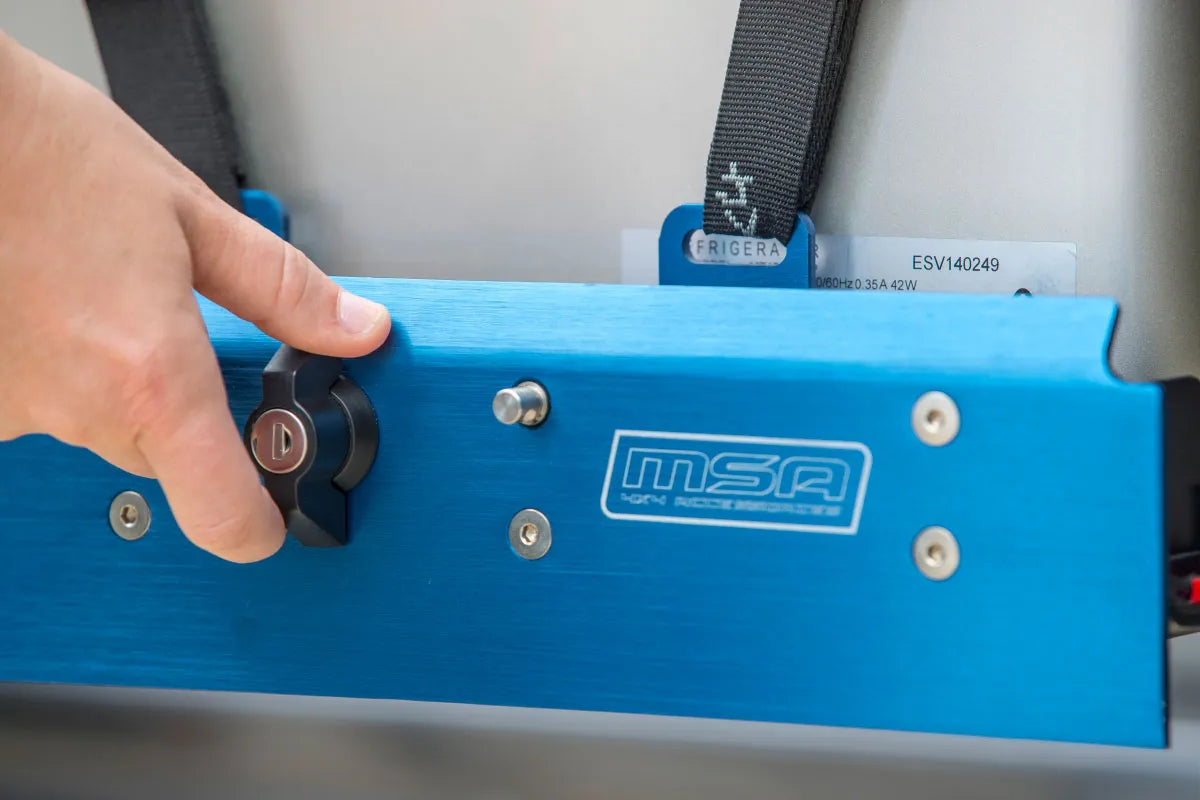

• Travel lock and key

• Anodised blue faceplate

Includes:

• Screws for 1/2" Plywood Mounting
• FTD25 4 Piece Fridge Tie-Down Kit

• Pre-drilled tray holes

• MSA 4X4 Lifetime Guarantee

Note:

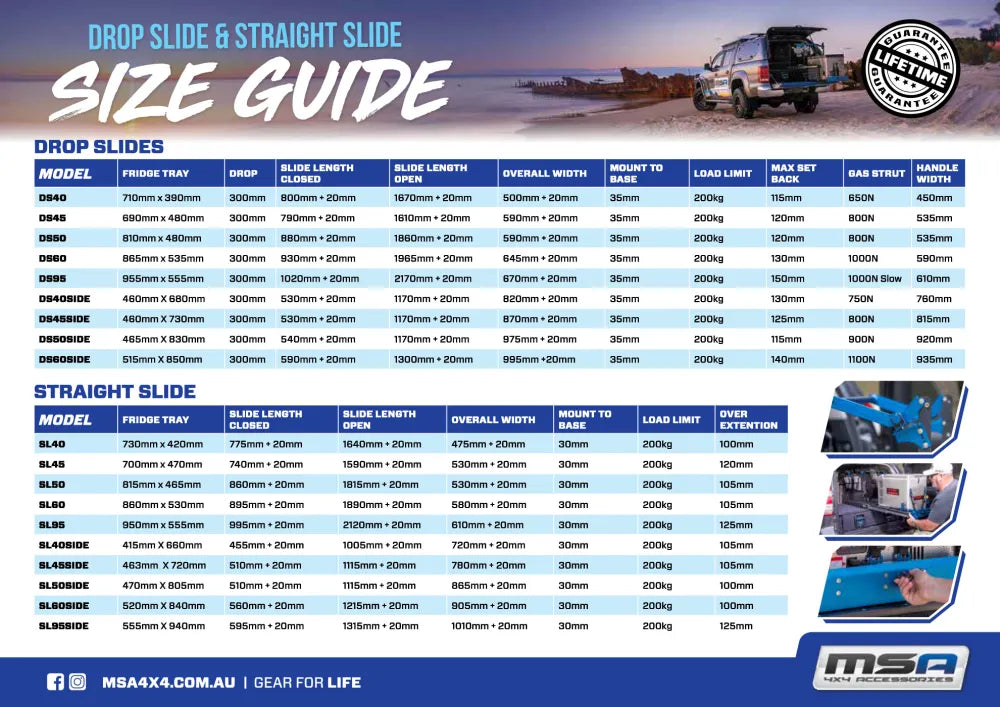

•  4 sizes available to suit a variety of applications
• MSA 4X4 Fridge Barriers available for all models

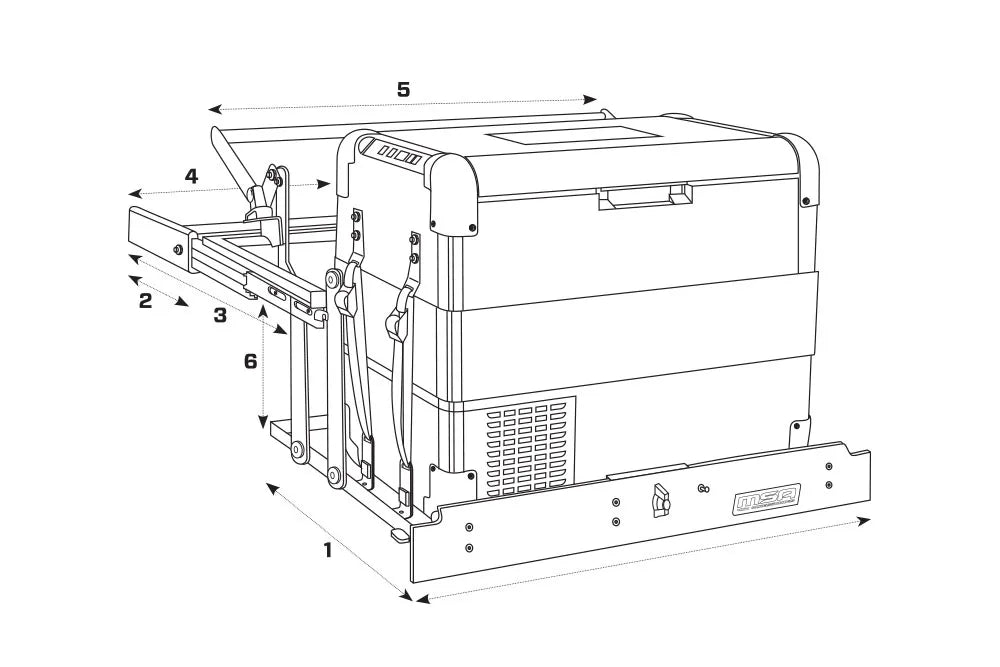

Weight	42kg
Freight Dimensions	1130×680×170
Fridge Tray1	465×830
Slide Length Closed2	540+20
Slide Length Open3	1170+20
Overall Width4	975+20
Handle Width5	920
Drop6	300
Mount to Base	35
Max Set Back	115

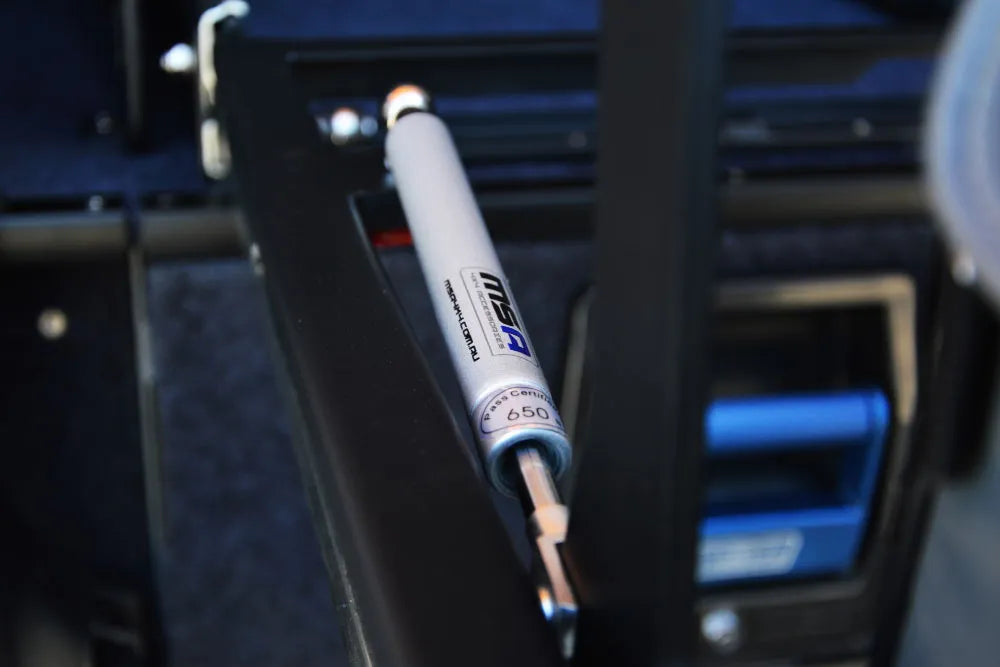

Gas Strut	900N
(all measurements displayed are in mm)
