DS40 DROP SLIDE™ WITH TABLE

LIGHTER...STRONGER...SAFER...SMARTER

*click here to find the fridge application chart for fridge compatibility*

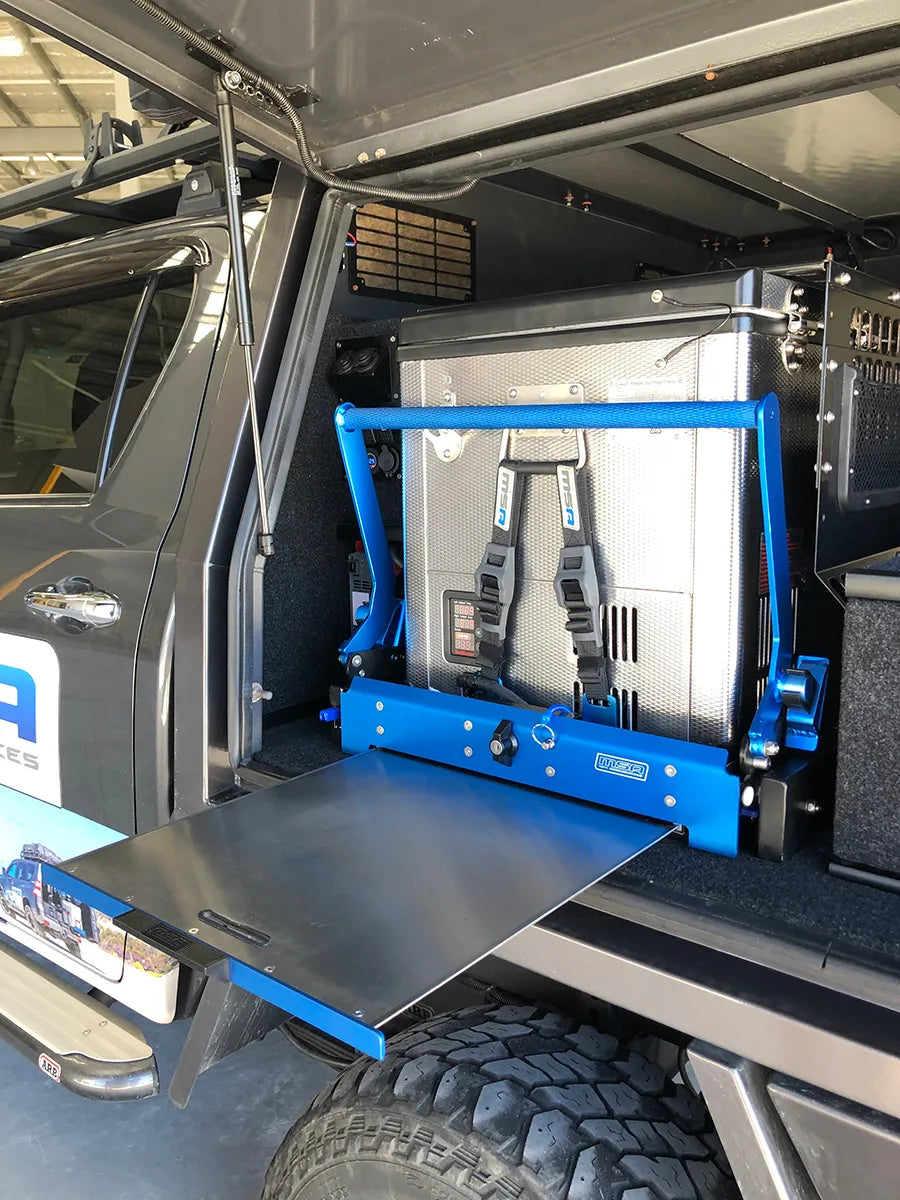

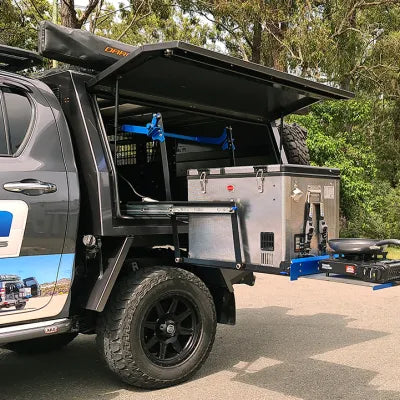

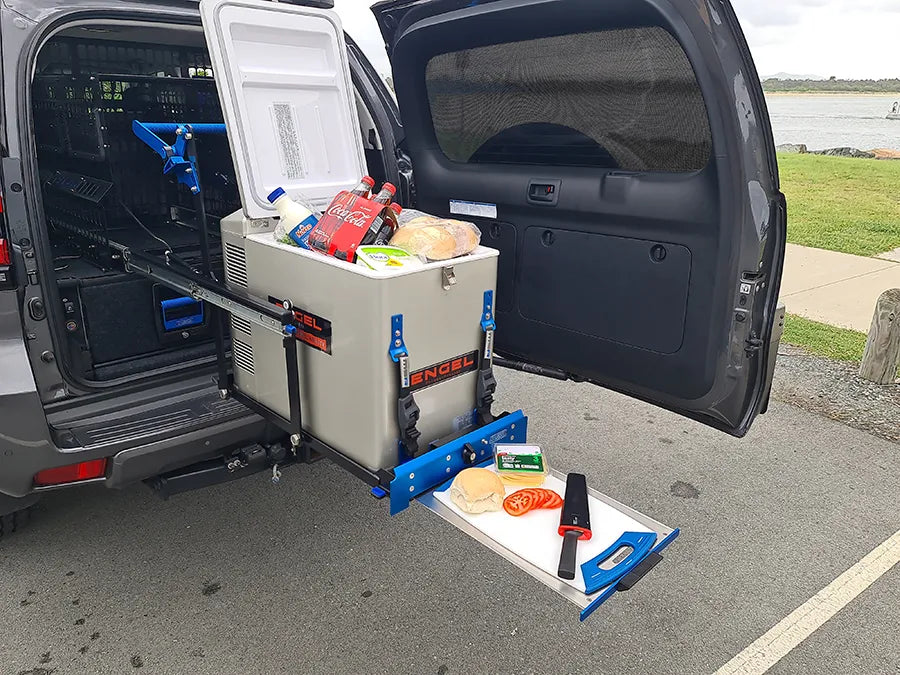

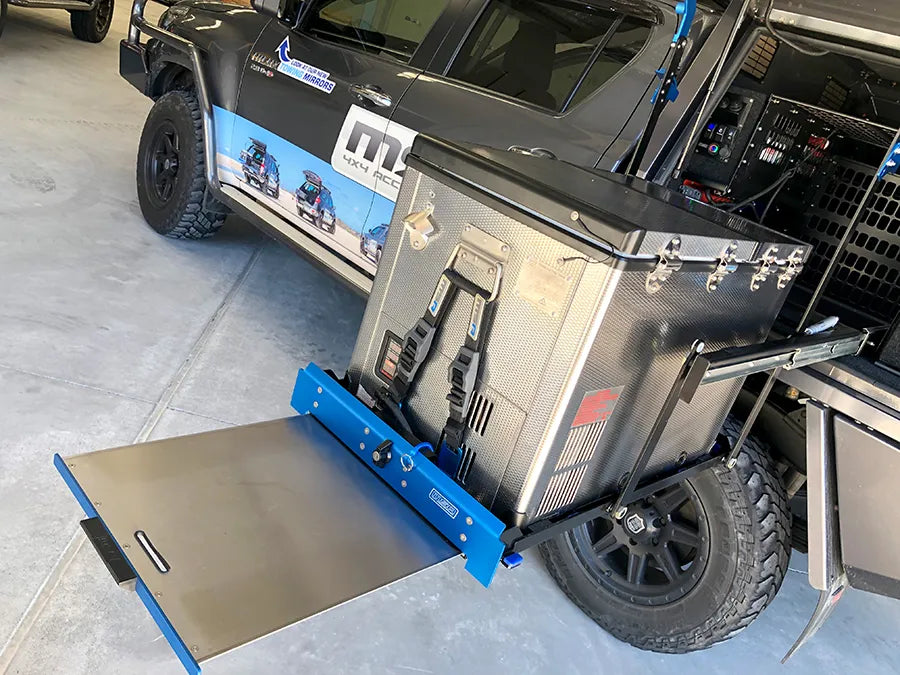

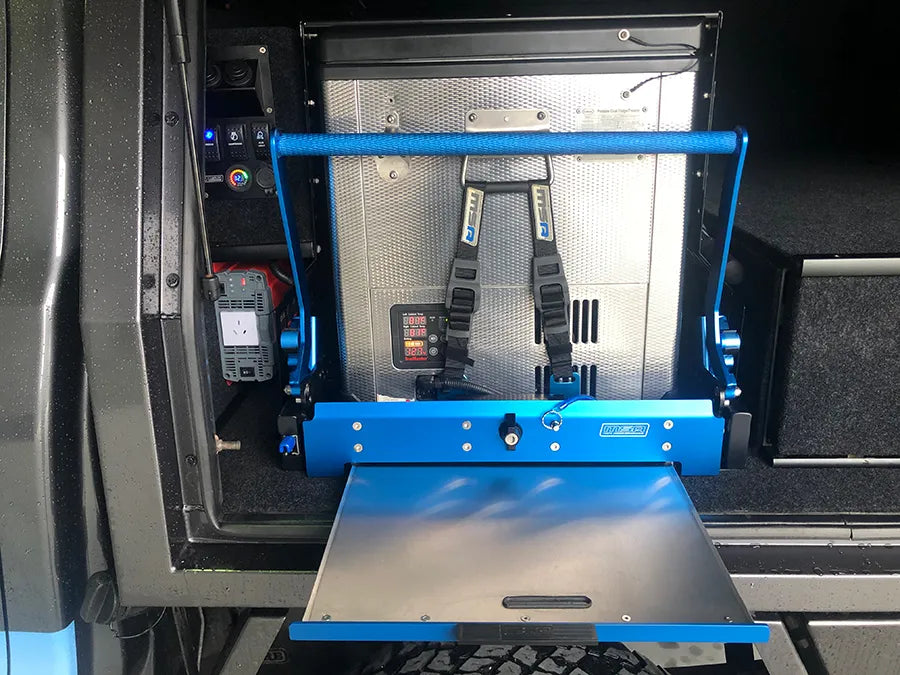

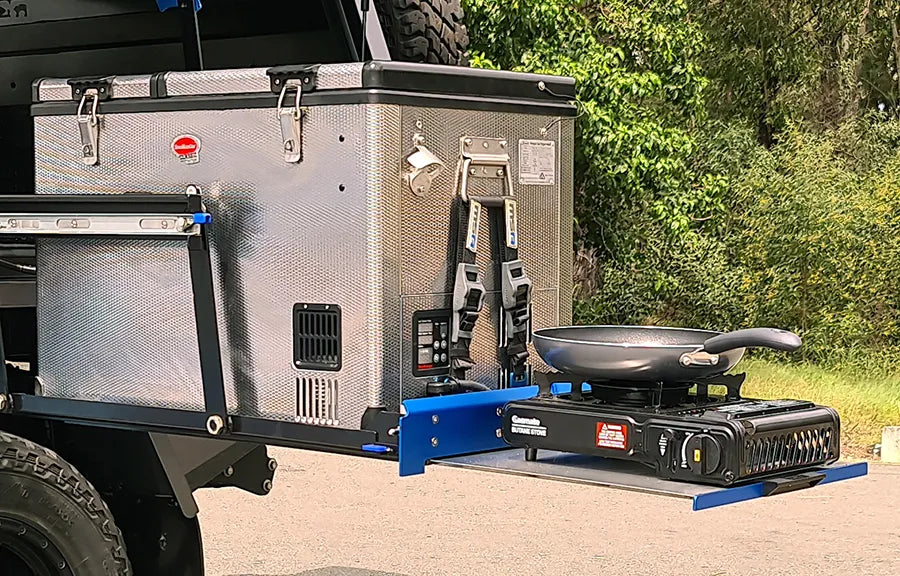

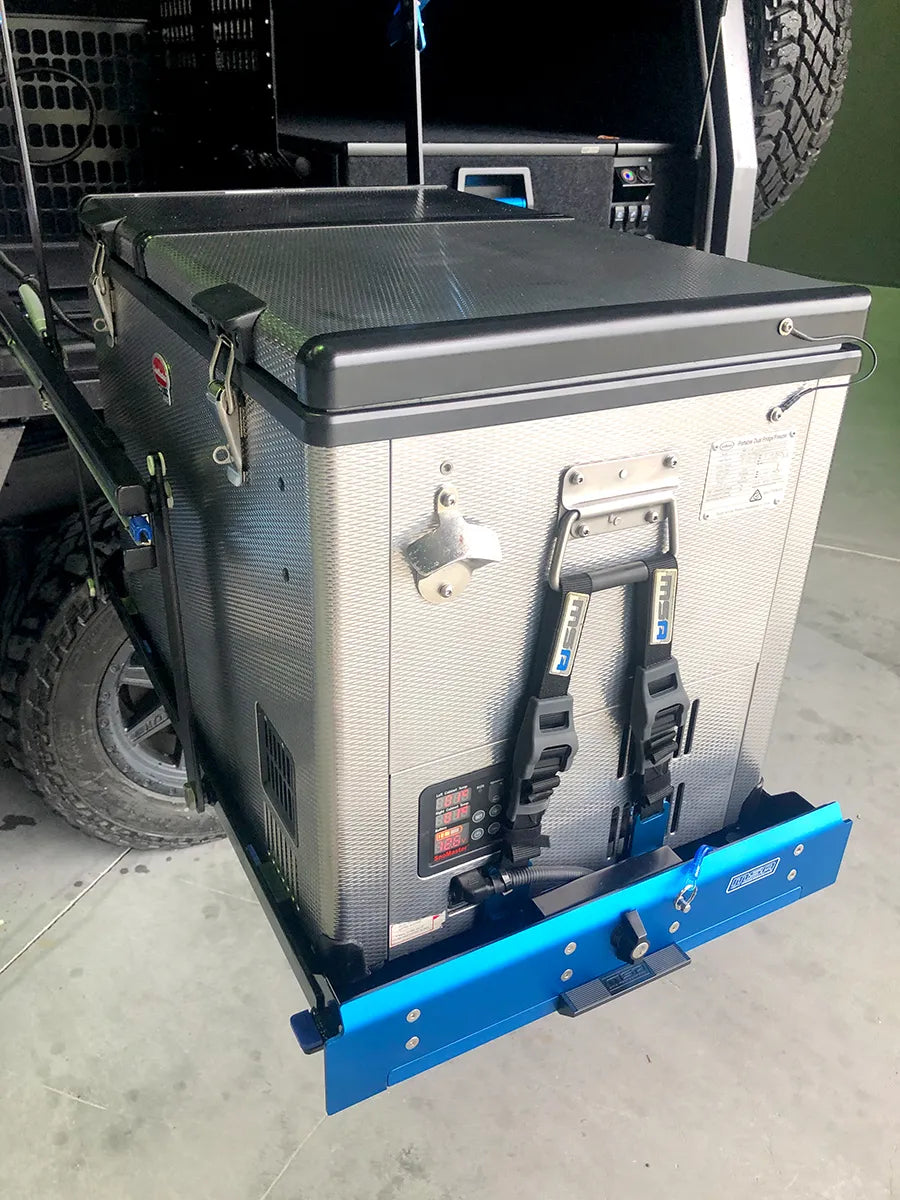

Perfect for preparing a quick meal for the family when on the road. The Drop Slide™ lowers 30 centimetres while extending over the tailgate of the vehicle, allowing easy access to a fridge, toolbox or generator. The slide remains in a horizontal position when lowing, avoiding any contact with the vehicle. The Drop Slide™ with Table features the unique, easily recognisable, MSA 4X4 blue anodised faceplate. Creating a tough, durable and sleek finish, it is sure to stand out from its competitors. The Slide also has a powder-coated steel frame construction for more durability when in use. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Features:

• Slide-out 316 stainless steel table

• Compact size

•  Easy install

•  Lock-in and lock-out safety system

•  Stainless steel and blue anodised aluminium fittings

•  Powder-coated steel frame construction

• Travel lock and key
• Anodised blue faceplate

Includes:

• Screws for 1/2" Plywood Mounting
• FTD25 4 Piece Fridge Tie-Down Kit

• Pre-drilled tray hole
• MSA 4X4 Lifetime Guarantee

Note:

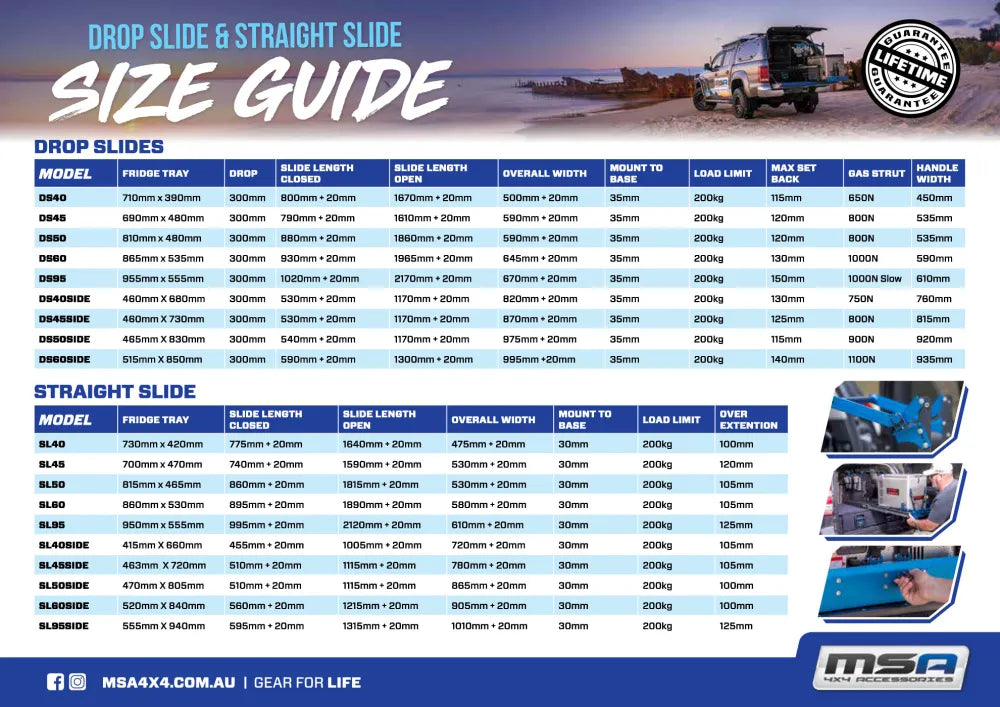

•  5 sizes available to suit a variety of applications
• MSA 4X4 Fridge Barriers available for all models

Weight	40kg
Freight Dimensions	900×600×160
Fridge Tray1	710×390
Slide Length Closed2	800+20
Slide Length Open3	1670+20
Overall Width4	500+20
Handle Width5	450
Drop6	300
Mount to Base	35
Max Set Back	115
Table Travel Distance7	425
Table Width8	310
Gas Strut	650 N
(all measurements displayed are in mm)
