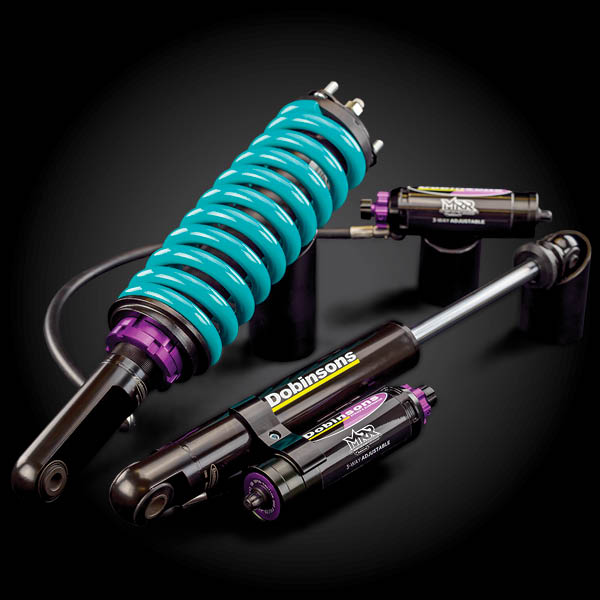

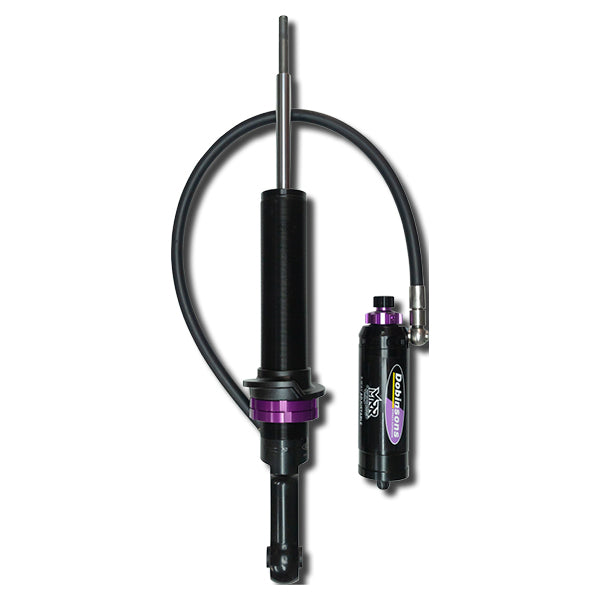

DOBINSONS PAIR OF EXTENDED TRAVEL FRONT MRR 3-WAY ADJUSTABLE STRUTS (MRA59-A220)

DOBINSONS PAIR OF EXTENDED TRAVEL FRONT MRR 3-WAY ADJUSTABLE STRUTS (MRA59-A220)

SKU:

Regular price $1,210.00 USD
Regular price Sale price $1,210.00 USD
Sale Sold out
Shipping calculated at checkout.

HIGH PERFORMANCE RACE-BRED MONOTUBE TECHNOLOGY

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine.
  • Vehicle Fitment
  • Toyota FJ Cruiser 2003-2009
  • Toyota Tacoma 2nd Gen
  • Toyota Tacoma 3rd Gen
  • Toyota 4Runner 4th Gen
  • Toyota Prado 120
  • Lexus GX470
*Sold as a pair.

Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in-house suspension design engineers, Our 4×4 shock absorbers are designed and tested to perform in the harshest conditions right across the world. As Dobinsons Spring & Suspension export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter. Our MRR shock absorbers are made from the world’s highest quality external and internal parts sourced worldwide. They provide a significant increase in performance over the standard shock absorbers. Originally equipped shock absorbers are prone to shock fade and when a vehicle is loaded simply cannot cope with the additional weight and the harsh condition that 4X4 owners love to put them through. Our MRR shock absorbers feature larger bodies, larger bores and increased valving performance to dramatically improve vehicle handling and control and reduces shock fade.
    • Ride Height Adjustable up to 3".
    • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
    • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
    • 20 Stage Low Speed Compression - For creepy crawling and cornering
    • 15 Stage Rebound - Control your coils, prevent bucking
    • 50mm CNC Machined High Flow Billet Aluminium Race Piston
    • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
    • Upgraded 3 Stage FKM‐HNBR Sealing System
    • TSUGAMITM CNC machined components for precise tolerances
    • ParkerTM Braided High Pressure Hoses
    • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
    • T6 6061 Height Adjustable Spring Seat
    • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
    • 60mm Full 6063 aluminum remote reservoir
    • Lightweight CNC Machined Low Friction floating piston
    • High Quality O.E.M. Grade Natural Rubber Bushings - Noise Free Durability with Minimal Vibration
    • Single Piece Lower Leg
    • EDP Surface Protection
    • Direct Bolt-On Design
    • CNC TIG Precision Welded Body End Mounts
    • Fully Rebuildable Design

    Reservoir Installation Instructions

    Front Strut Assembly Instructions
    --

    Seat height on monotube shocks is adjustable, it is recommended to use listed seat heights ONLY, except in the case micro adjusting for any lean, Preloading coils too much will cause problems and poor ride quality.
    - When adjusting for any lean, Toyota IFS has a 2:1 ratio, meaning a 1/2" lean will require 1/4" adjustment to the coil-over.
    View full details

    HIGH PERFORMANCE RACE-BRED MONOTUBE TECHNOLOGY

    Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine.

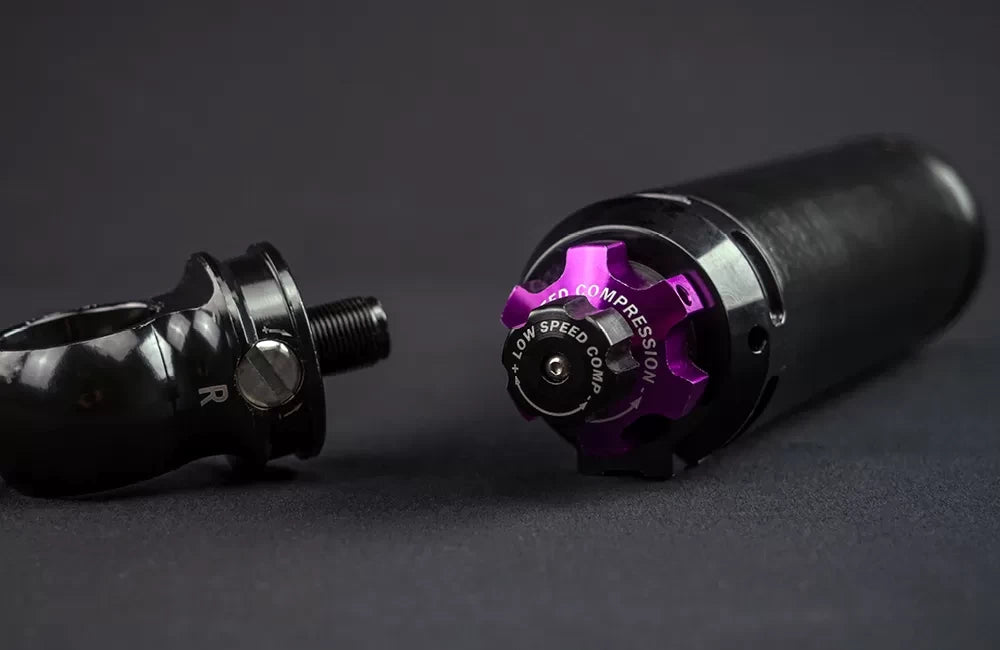

    3-WAY DAMPING ADJUSTMENT

    The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance.

    50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

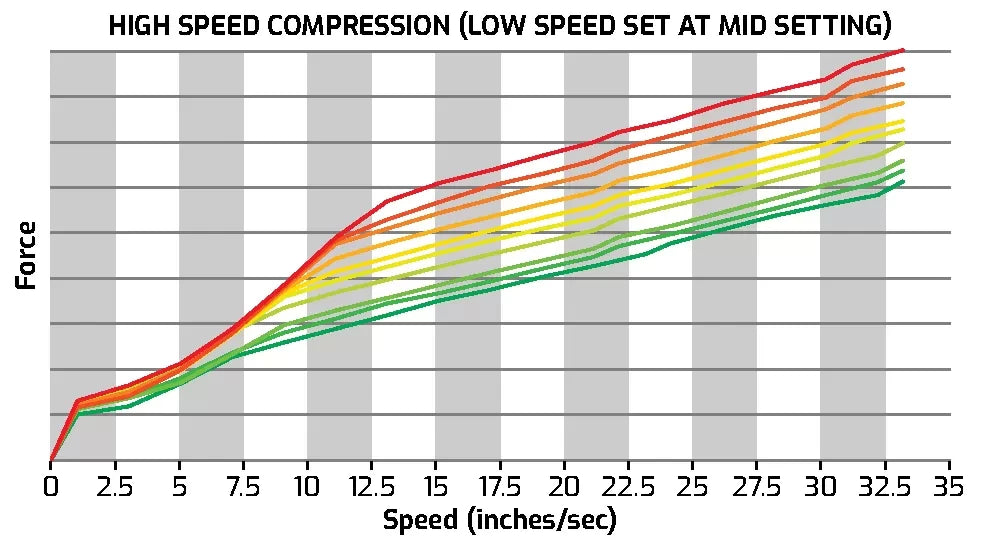

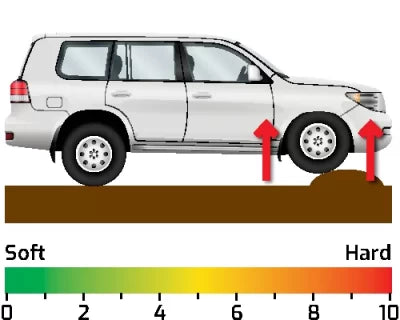

    • 10 STAGE HIGH SPEED COMPRESSION ADJUSTMENT

      High speed compression primarily affects the compression damping during high speed shaft movements such as harsh or square edge bumps and harsh vehicle landings.

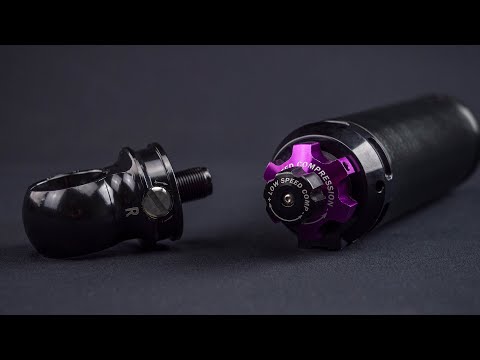

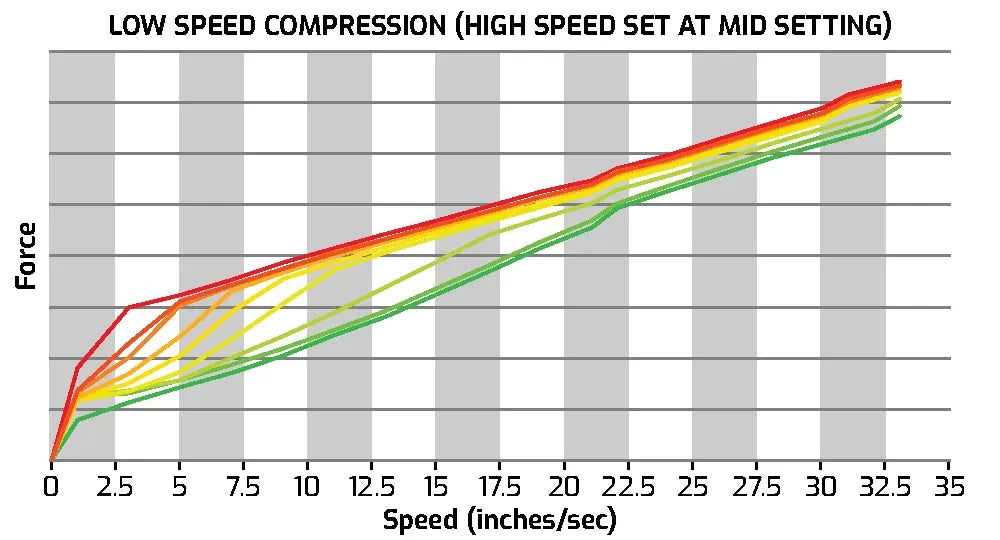

    • 20 STAGE LOW SPEED COMPRESSION ADJUSTMENT

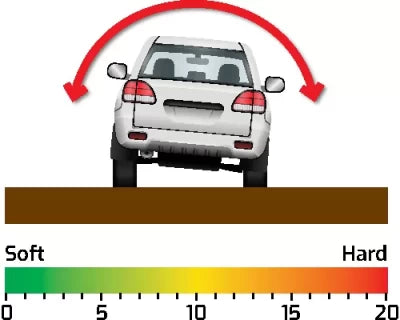

      Low speed compression primarily affects the compression damping during low speed shaft movements such as vehicle pitch, dive and roll, wheel traction and vehicle ride (harshness and plushness).

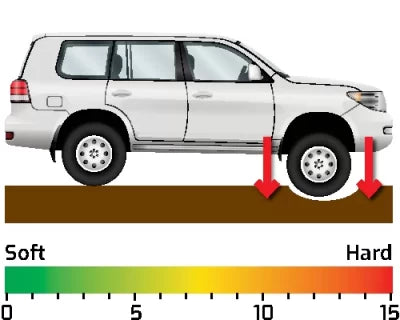

    • 15 STAGE REBOUND ADJUSTMENT

      Rebound damping primarily affects vehicle traction, damper top-out and vehicle body movements such as vehicle pitch, dive and roll.

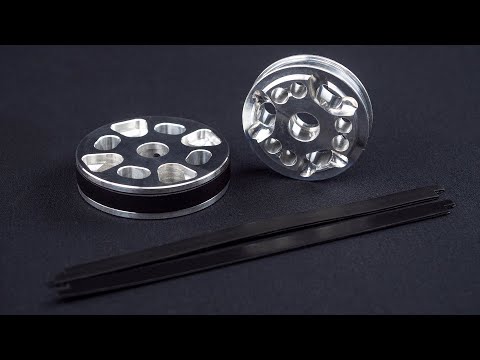

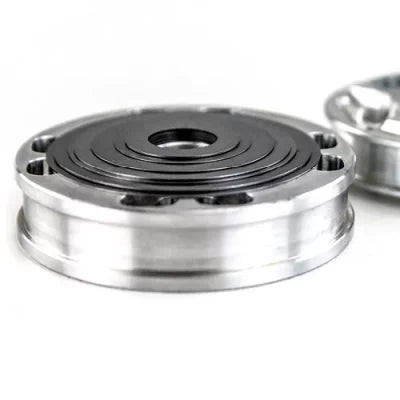

    • High Flow Piston

      50 / 60mm CNC Machined High Flow Billet Aluminium Race Piston

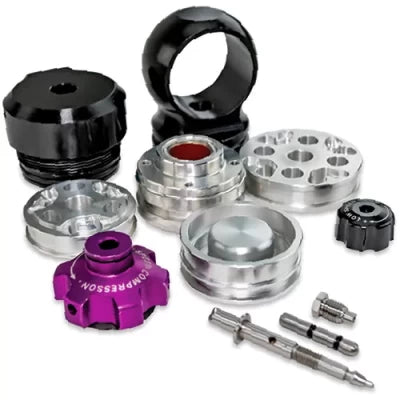

    • CNC Machined Components

      TSUGAMI™ CNC machined components for precise tolerances

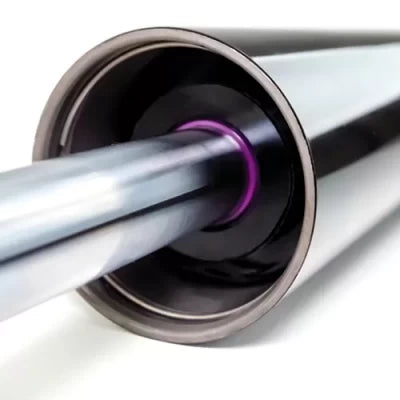

    • Heavy Duty Body

      3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. shock Body Precision Honed to +/- 0.04mm

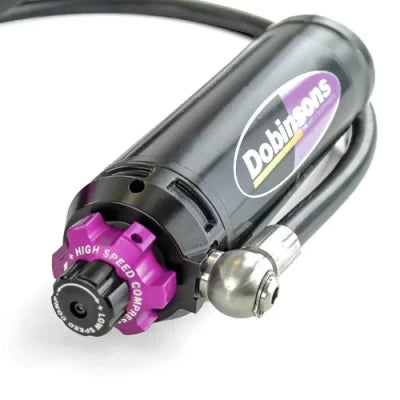

    • Remote Reservoir

      60mm 6063 Aluminium Remote Reservoir

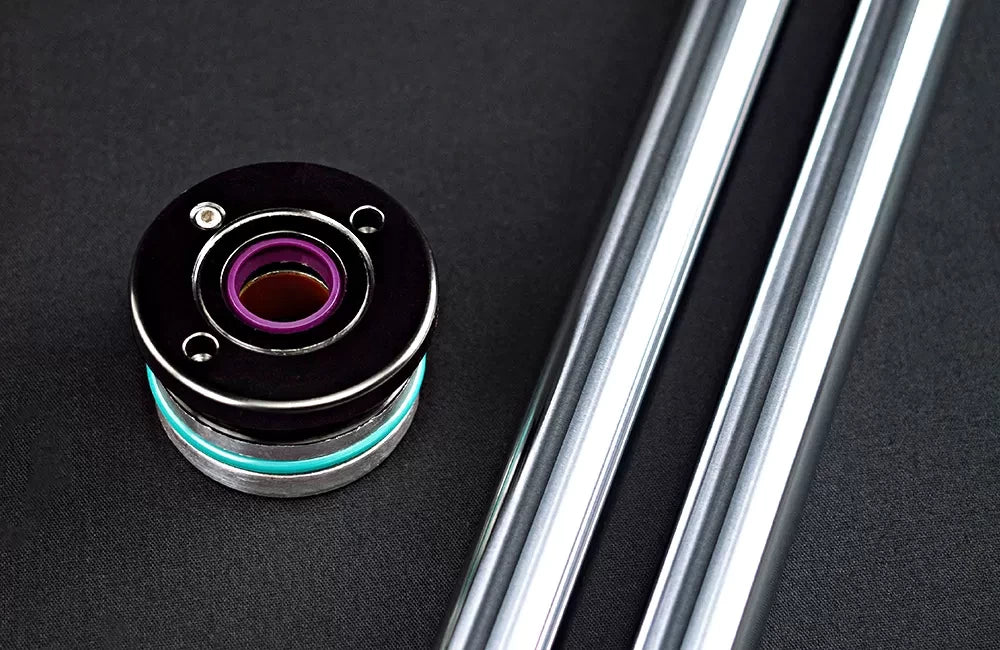

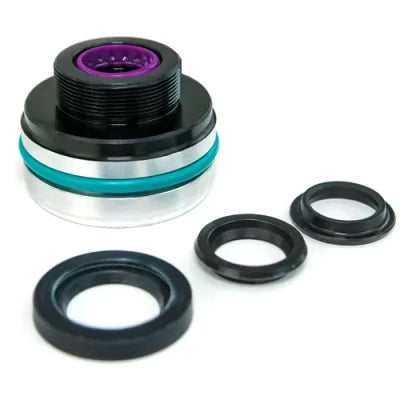

    • 3 Stage Sealing System

      Upgraded 3 Stage FKM‑HNBR Sealing System

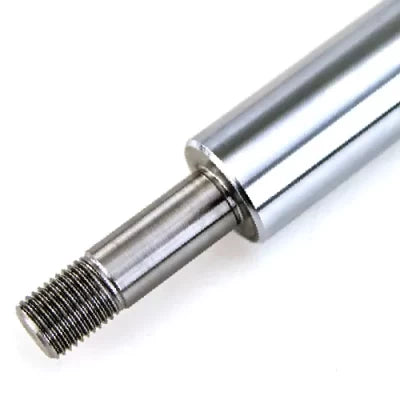

    • High Strength Shock Shaft

      5140 HV900 Hard Chrome Plated, Heat treated 18 / 22mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA

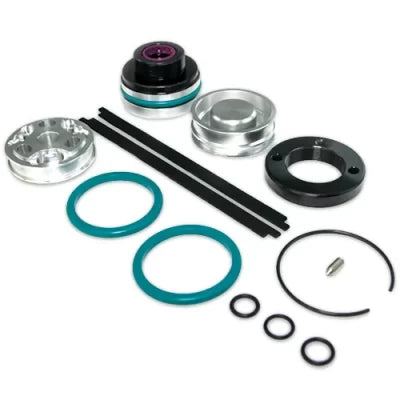

    • Rebuildable

      Fully Rebuildable Design

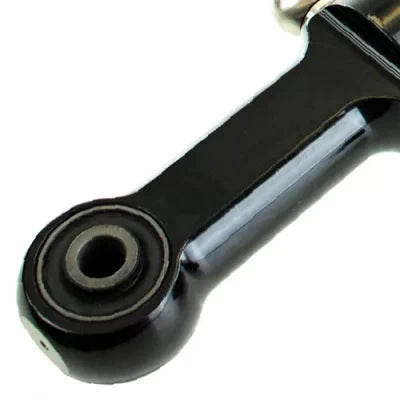

    • Lower Leg

      Single Piece Lower Leg*

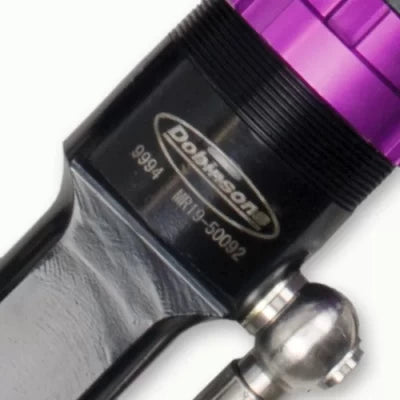

    • EDP Protection

      Electro-Deposit Primer Surface Protection

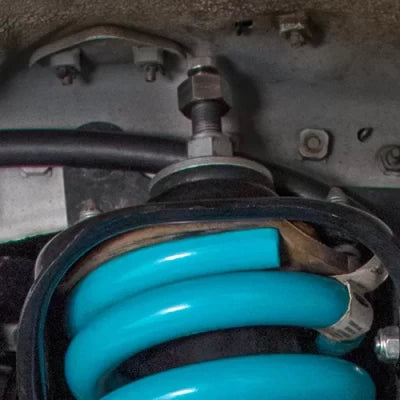

    • Bolt-On

      Direct Bolt-On Design

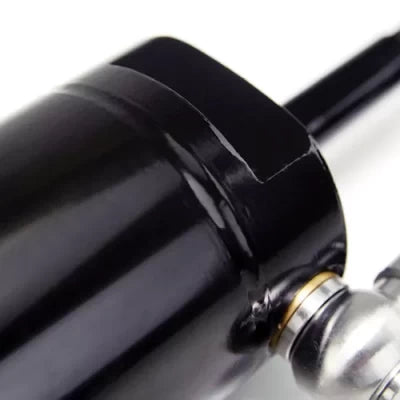

    • Welded End Mounts

      CNC TIG Precision Welded Body End Mounts

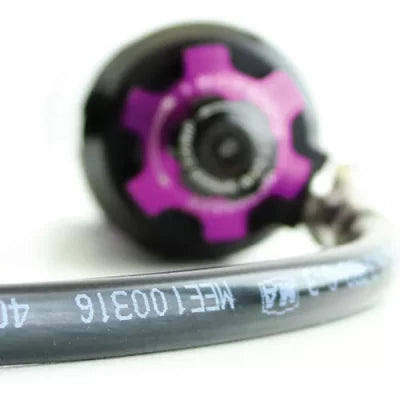

    • High Pressure Hoses

      Parker™ Braided High Pressure Hoses

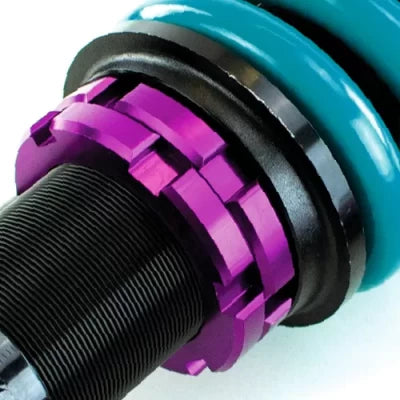

    • Adjustable Spring Seat

      T6 6061 Height Adjustable Spring Seat*

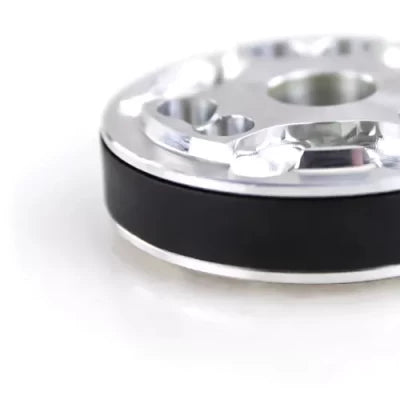

    • Composite Wear Band

      Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‑wear performance

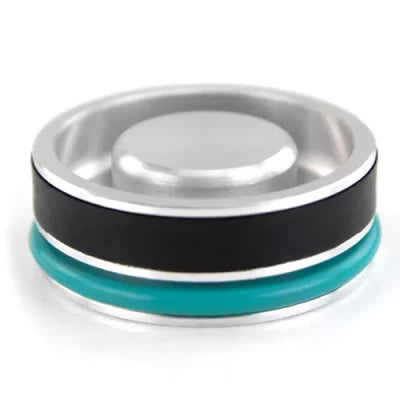

    • Floating Piston

      Lightweight CNC Machined Low Friction floating piston

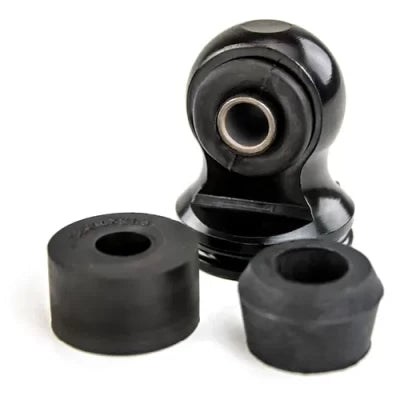

    • Rubber Bushings

      High Quality O.E.M. Grade Natural Rubber Bushings. Noise Free Durability and Vibration Isolation.

    • THE ULTIMATE OFF-ROAD MACHINE

      The 3-Way Adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...

    • PERFORMANCE AND OFF-ROAD DURABILITY

      The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.

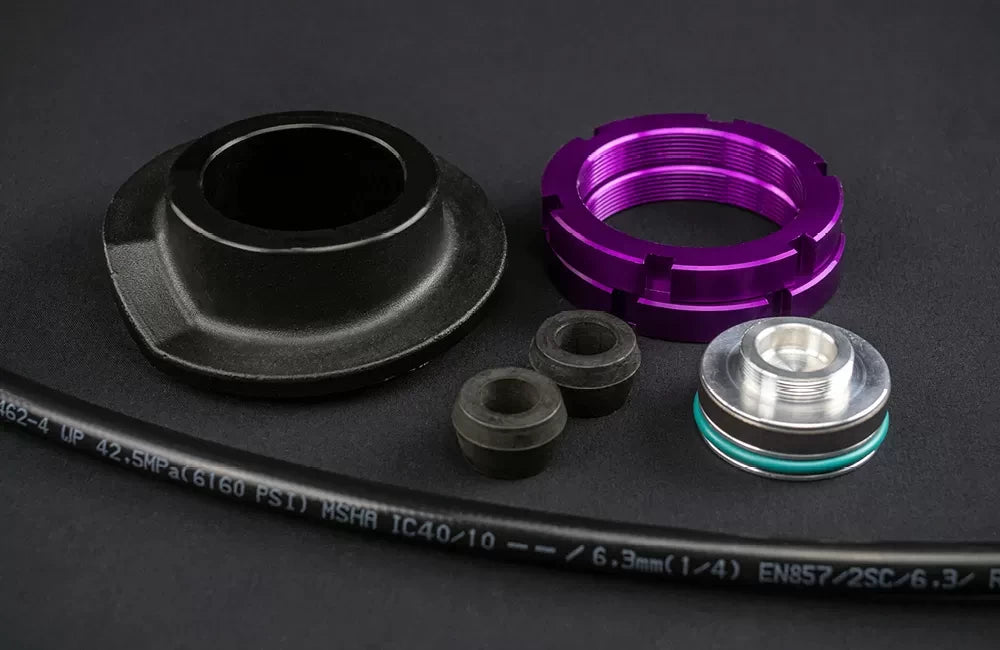

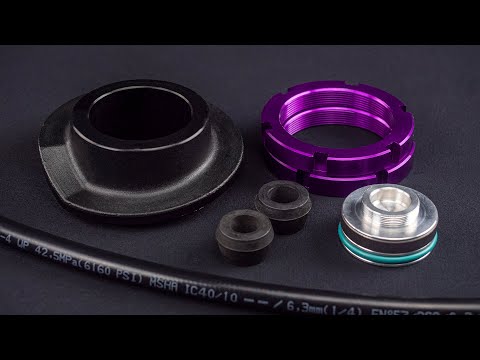

    • QUALITY COMPONENTS

      Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.
