DOBINSONS 1.5" TO 3.0" MRR 3-WAY ADJUSTABLE SUSPENSION KIT FOR 2005 TO 2022 TACOMA 4X4

DOBINSONS 1.5" TO 3.0" MRR 3-WAY ADJUSTABLE SUSPENSION KIT FOR 2005 TO 2022 TACOMA 4X4

SKU:

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
PLEASE CALL for Pricing and to Place an Order.

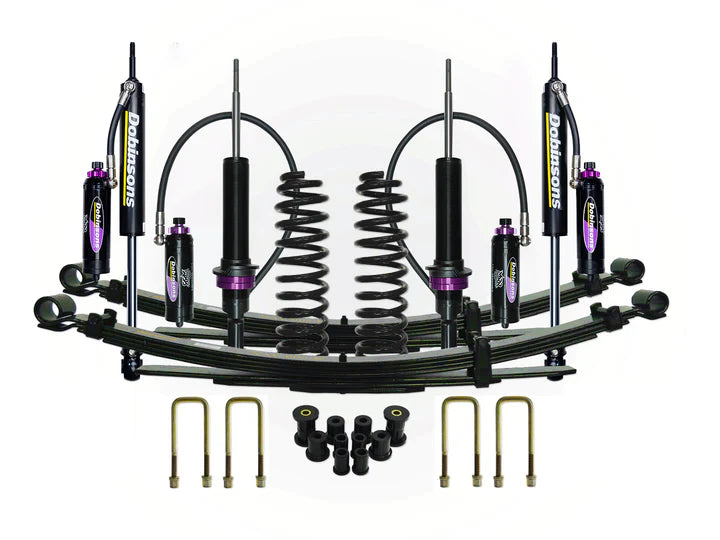

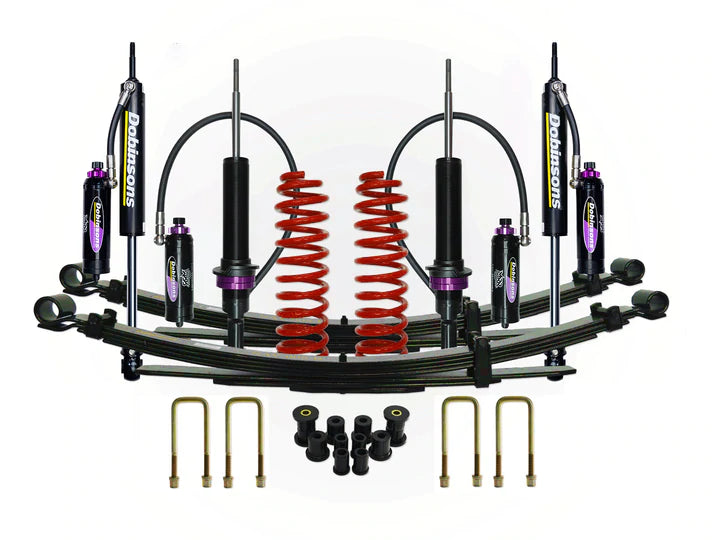

Suspension Kit Includes:
Front Coil Set
MRA59-A220 Front Shocks
Diff Drop Kit
Sway Bar Relocation Kit
Rear Leaf Spring Set
Greaseable Bushing Kit
MRA59-A940 Rear Shocks
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm CNC Machined High Flow Billet Aluminium Race Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
  • Upgraded 3 Stage FKM‐HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings - Noise Free Durability with Minimal Vibration
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design

Front Coils combined with MMR shocks allow for Adjustable Ride Height up to 3" of Lift over Stock. UCAs are recommended when lifting over 2" on the front suspension.

*All posted coil/leaf lift heights are approximate and based off the common Double Cab V6 4x4 configuration.

*Rear Leaf Options:

L59-110-R

  • Tacoma Single Cab / Double Cab SB - 2.1" 0-220lb Load
  • Tacoma Double Cab LB - 1" Stock Load

L59-111-R

  • Tacoma Single Cab / Double Cab SB - 2.1" 600lb Constant Load
  • Tacoma Double Cab LB - 2.1" 0-220lb Load

L59-112-R

  • Tacoma Single Cab / Double Cab SB - 2.1" 880-1210lb Constant Load, + LR59-113R-R6 AAL for 2.1" 1210-1450lb Constant Load
  • Tacoma Double Cab LB - 2.1" 600lb Constant Load, + LR59-113R-R6AAL for 2.1" 880-1210lb Constant Load
