COMEUP

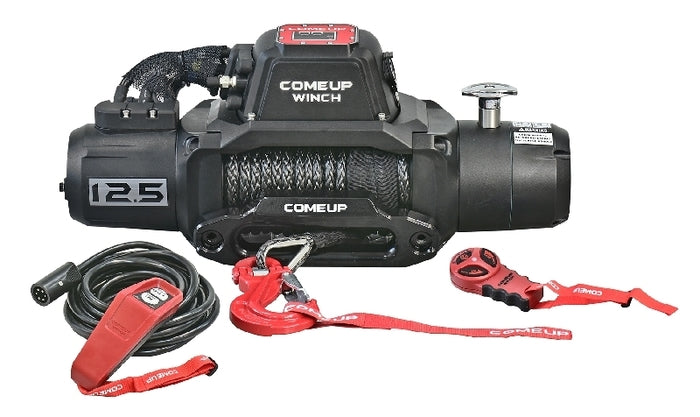

COMEUP SEAL SOLO 12.5rs, 12V Winch

COMEUP SEAL SOLO 12.5rs, 12V Winch

SKU:

Regular price $1,780.00 USD
Regular price $1,950.00 USD Sale price $1,780.00 USD
Sale Sold out
Shipping calculated at checkout.

*Free Shipping to Lower 48.

Description

  • Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
  • Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.
  • Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.

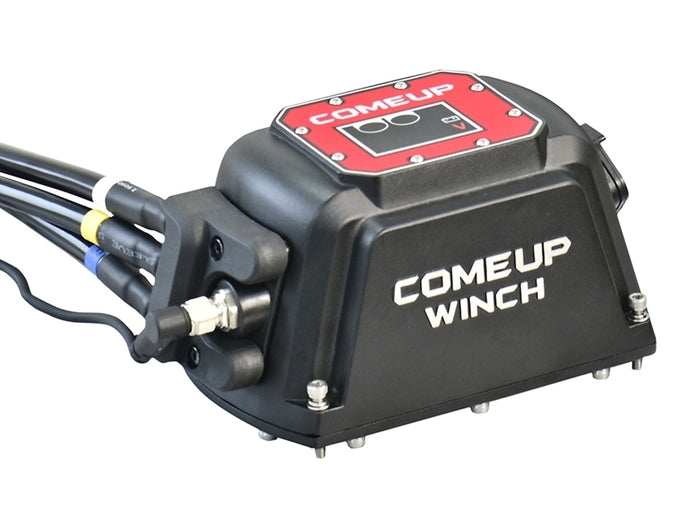

  • Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
  • Newly designed wireless and wired controllers offer better holding and reliable operation. Wired controller has magnet design, allowing it to put on idle vehicle body.
  • The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
  • Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

Specifications

Rated Line Pull 12,500 lb (5,670 kg) single line
Motor 5.0 hp / 3,730 w 12V Series Wound
Gear Ratio 3-Stage Planetary 225:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum
Drum Size 2.5" x 9" (63.5 x 228 mm)
Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
Rope Type Synthetic Rope
Rope Size 7/16” x 82’ (11 mm x 25 m)

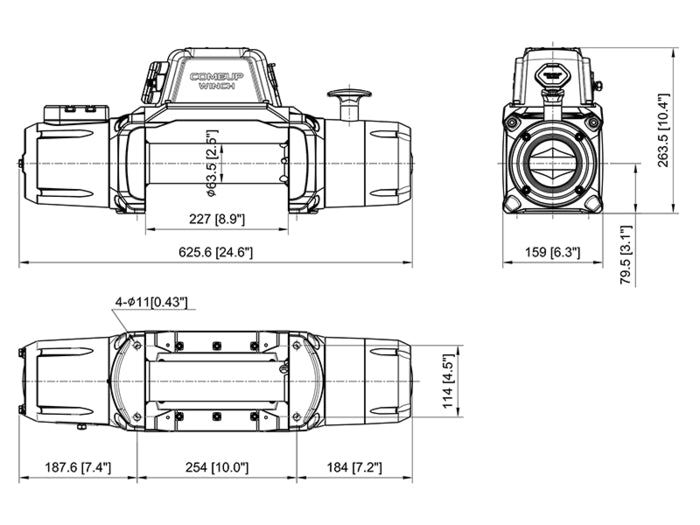

Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
Winch Weight 79.4 lb
Gross Weigh 93.9 lbs
Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
