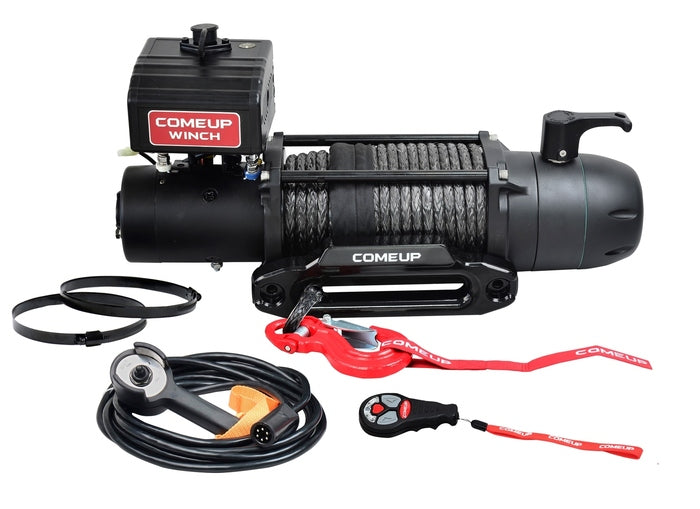

COMEUP SEAL Slim 9.5rs, 12V WINCH
COMEUP SEAL Slim 9.5rs, 12V WINCH
SKU:
Regular price
$1,338.00 USD
Regular price
$1,460.00 USD
Sale price
$1,338.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
*Free Shipping to Lower 48.
Description
- 12V DC severe duty winch rated at 9,500 lbs pulling meets or exceeds your expectations.
- The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
- Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
- New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.
- Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
- Cutout switch prevents the vehicle battery from draining when no use.
- Both built-in digital two-way wireless remote control and wired waterproof remote control.
- A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Specifications
Rated Line Pull | 9,500 lbs (4,309 kg) single line |
Motor | 5.0 hp / 3,730 w 12V Series Wound |
Gear Ratio | 3-Stage Planetary 159:1 |
Clutch (freespooling) | Rotating Ring Gear |
Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
Winch Construction | Aluminum Die Cast Housing with Steel Drum |
Drum Size | 2.5" x 9" (63.5 x 228 mm) |
Control | Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord |
Rope Type | Synthetic rope |
Warranty | Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components |
Box Dimensions | 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm ) |
