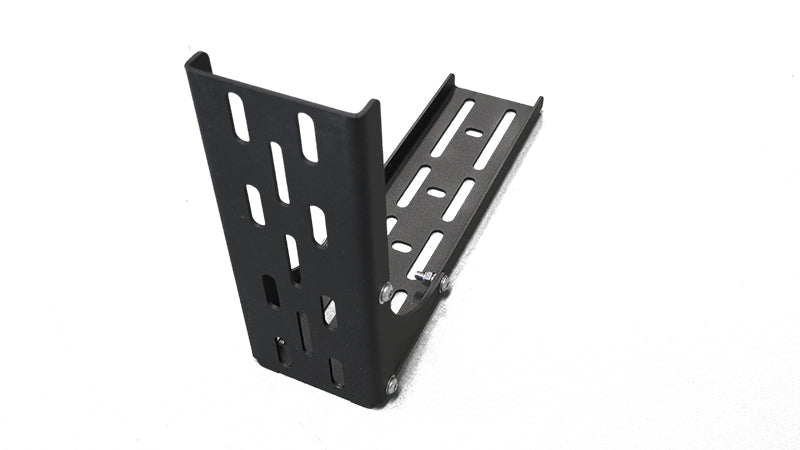

Awning Heavy Duty L Bracket

*Sold as a Pair (2 brackets)

The Bush Company Awnings are supplied with sufficient adjustable heavy-duty brackets for fitment (2 with the 180 XT MAX and 270 XT, and 3 with the 270 XT MAX).  You may want to have additional brackets depending on the fitment and the use of the vehicle/awning, these are sold in pairs.

Multiple Hole and Slot options to fit a variety of mounting needs.

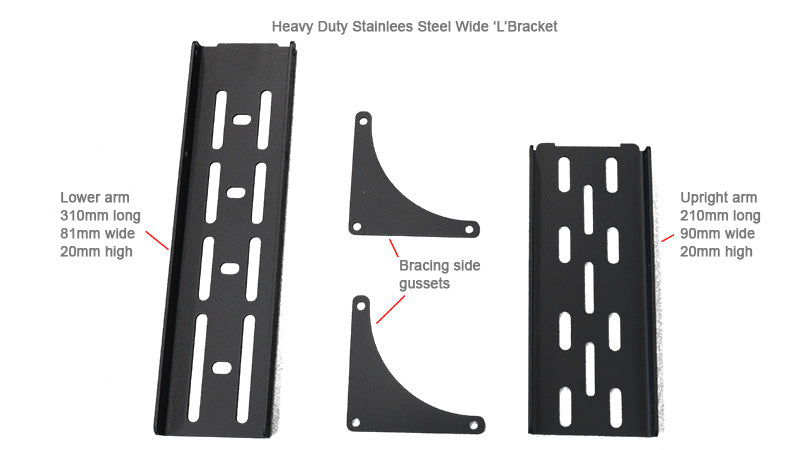

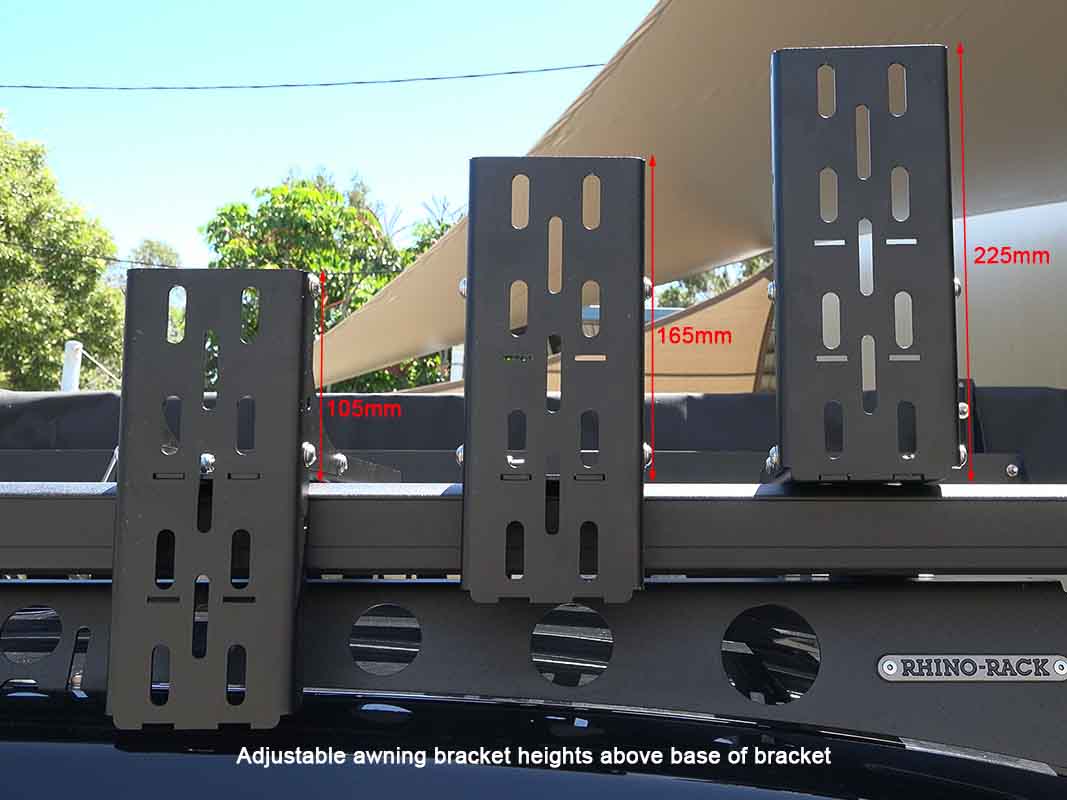

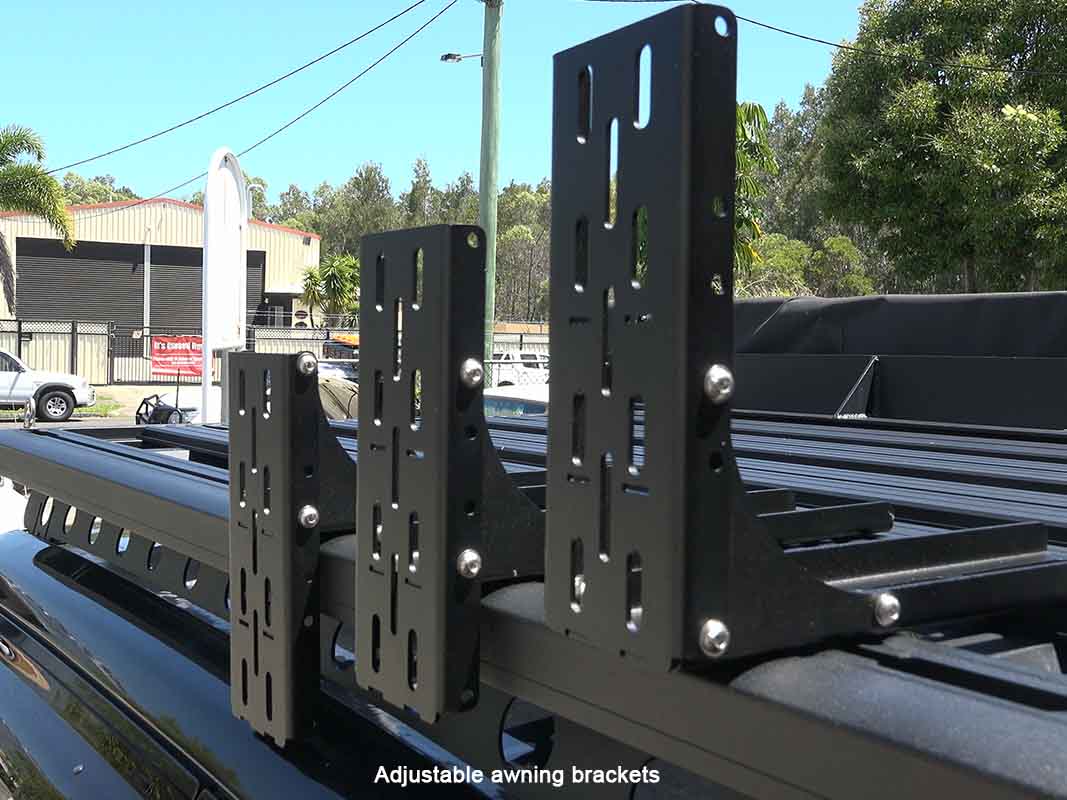

For any awning it is important that the bracket can support the weight of the awning in off-road conditions and when in use, especially the larger 270-degree awnings.  The  Heavy Duty L Bracket Long has been designed to suit The Bush Company awnings when fitted to load bars or a roof rack.  The bottom arm which attaches to the load bar or roof-rack is 310mm (12 ¹³/₆₄”) long and 81mm (3 ³/₁₆”) wide with a range of holes and slot options for attachment, this longer arm is ideal for fitment to roof racks with wider slats where the attachment points are further apart such as a Rhino Pioneer Platform Rack. The vertical arm of the brackets can be configured in three positions enabling the height above the rack to be adjusted from either 225mm (8 ⁵⁵/₆₄”), 165mm (6 ¹/₂”) or 105mm (4 ⁹/₆₄”).

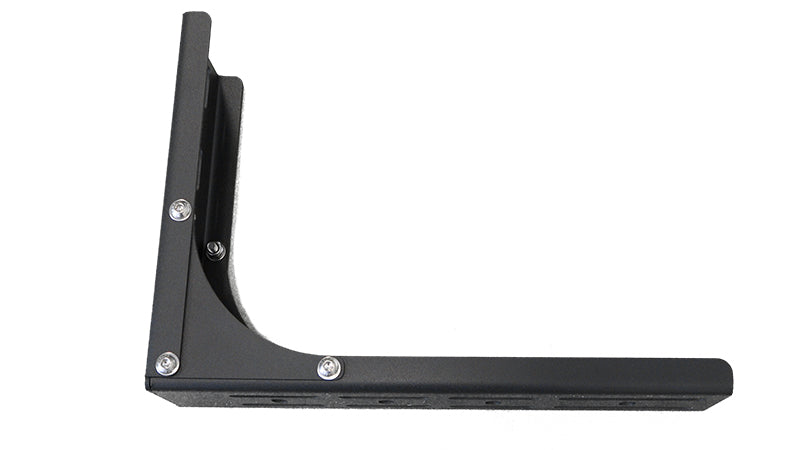

The bracket is made from stainless steel and has been CNC laser cut and folded and finished in a durable powder coat finish.  The brackets have heavy duty gussets in the corner to withstand the rigors of off-road travel, when fitted the gusset of the bracket must be facing upwards and not be installed further out than the edge of the rack.  The brackets are supplied with a complete set of stainless steel pan head and hex bolts and nyloc nuts for assembly.
