3 Inch Lift Kit | FOX 2.5 Performance Elite Series | Toyota Tundra ('22+) 4WD

3 Inch Lift Kit | FOX 2.5 Performance Elite Series | Toyota Tundra ('22+) 4WD

SKU:

Regular price $5,375.83 USD
Regular price Sale price $5,375.83 USD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING

Take your 2022-2024 Toyota Tundra truck to the next level and improve the ride with this 0-3-inch lift kit featuring FOX 2.5 Performance Elite Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

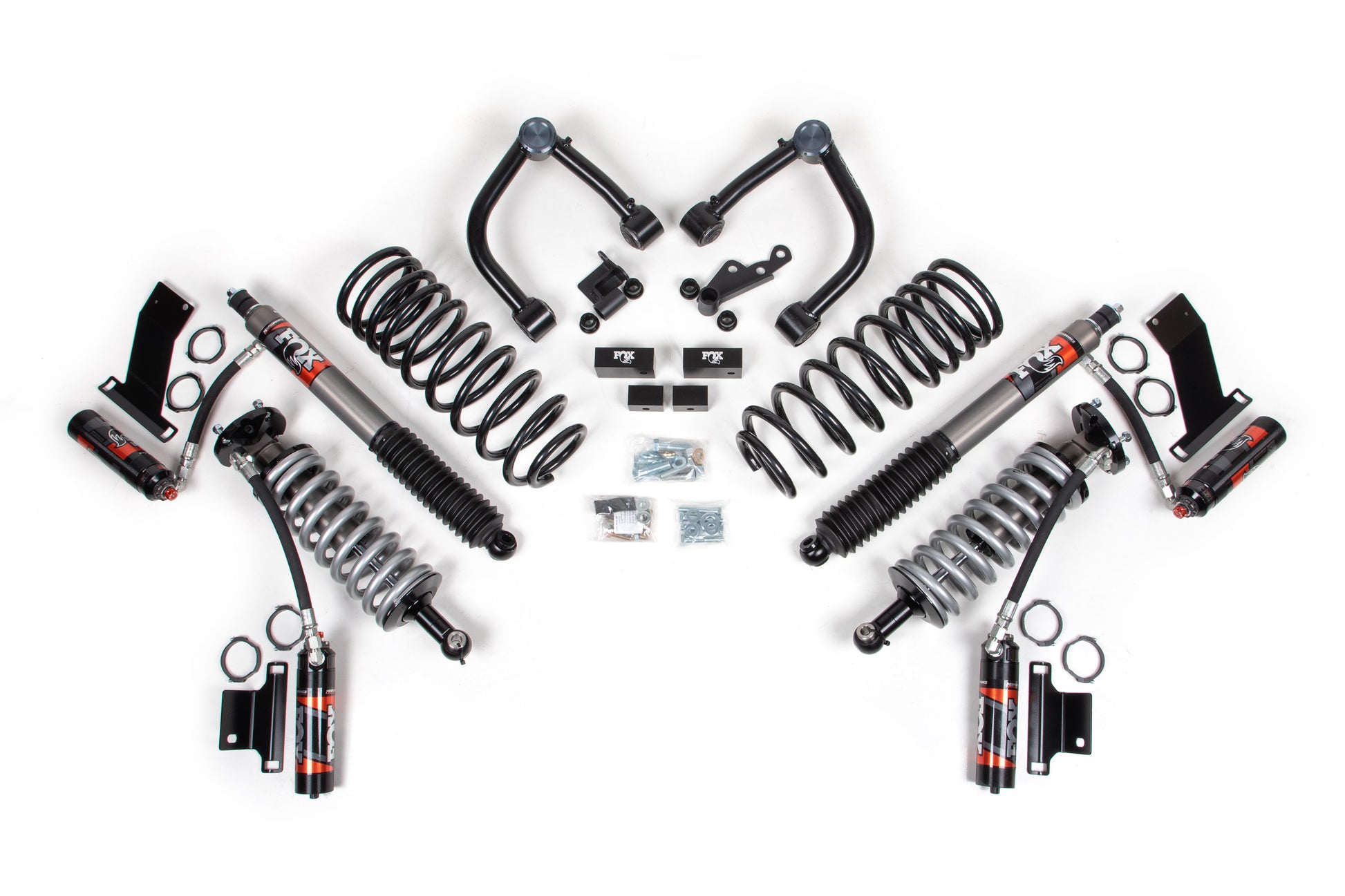

Up front the lift kit includes FOX 2.5 Performance Elite Coilovers with DSC remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks. In the rear this kit utilizes 1- 3/4" BDS heavy duty coil springs and a set of FOX 2.5 Performance Elite shocks with DSC remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.

DSC Adjustment

FOX 2.5 Performance Elite front coil-overs and rear shocks come equipped with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

  • FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock
  • BDS performance UCAs increase strength and allow for more suspension travel
  • FOX 2.5 Performance Elite series DSC rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 305 / 55 with 20 x 9 and 5 in. Backspace
  • 285 / 65 with 20 x 9 and 6.18 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5.5 in. Backspace

Important Notes

  1. Will not work on TRD Pro models.

2. Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3” Lift). The ball joint has been re-indexed to allow for max range of motion with 2”-3” lifts.

3. Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals

4. For replacement ball joints, order BDS088200. Ball joints are not directional


TIRES AND WHEELS

No Trimming*

295/65 R20 Tire w/ 6-7/8 BS (OE TRD Wheel)

285/65 R20 Tire or 285/75 R18 w/9” Wide 6-1/8” BS Wheel

295/60 R20 Tire or 295/70 R18 w/9” Wide 5-1/2” BS Wheel

305/55 R20 Tire or 305/65 R18 w/9” Wide 5” BS Wheel

Trimming**

325/60 R20 Tire w/9” Wide 6-1/8” BS Wheel

35/12.50 R20 Tire or 35/12.50 R18 w/9” Wide 5-1/2” BS Wheel

295/65 R20 Tire or 305/70 R18 or 285/75 R18w/9” Wide 5” BS Wheel

* Wheel and Tire combination was tested through normal driving

conditions within alignment specs with no rubbing or

trimming needed.

**Wheel and Tire combination was tested through

normal driving conditions within alignment specs and

some or all the following were required: removal of

mud flap, fender liner being trimmed or fastened

further back, body mount bump

being cut off or ground down
