DROP SLIDE™ - DS60

LIGHTER...STRONGER...SAFER...SMARTER

*click here to find the fridge application chart for fridge compatibility*

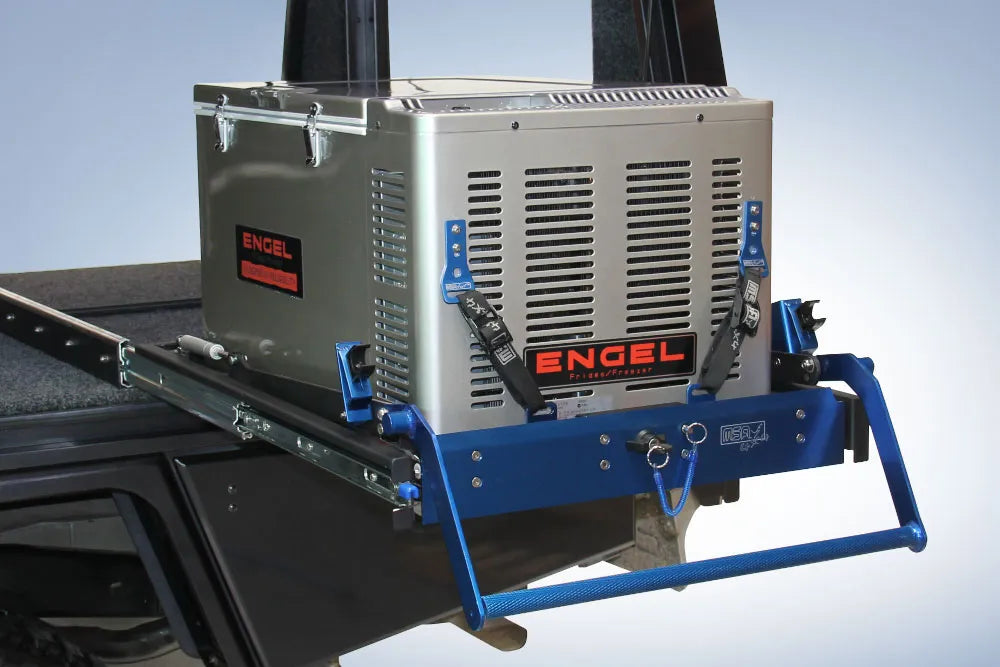

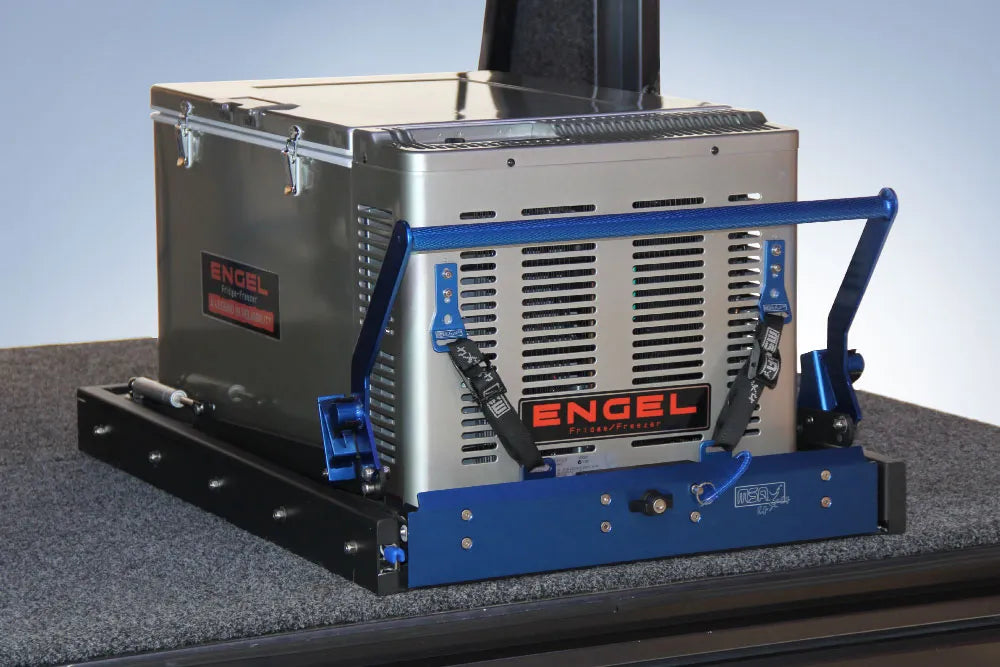

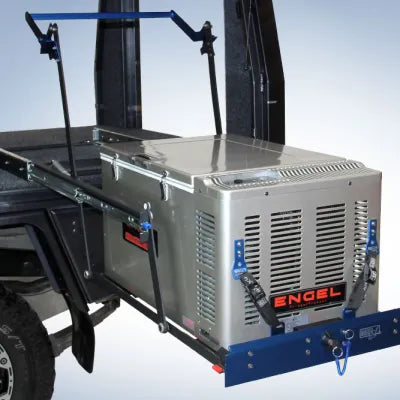

The patented Drop Slide™ is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

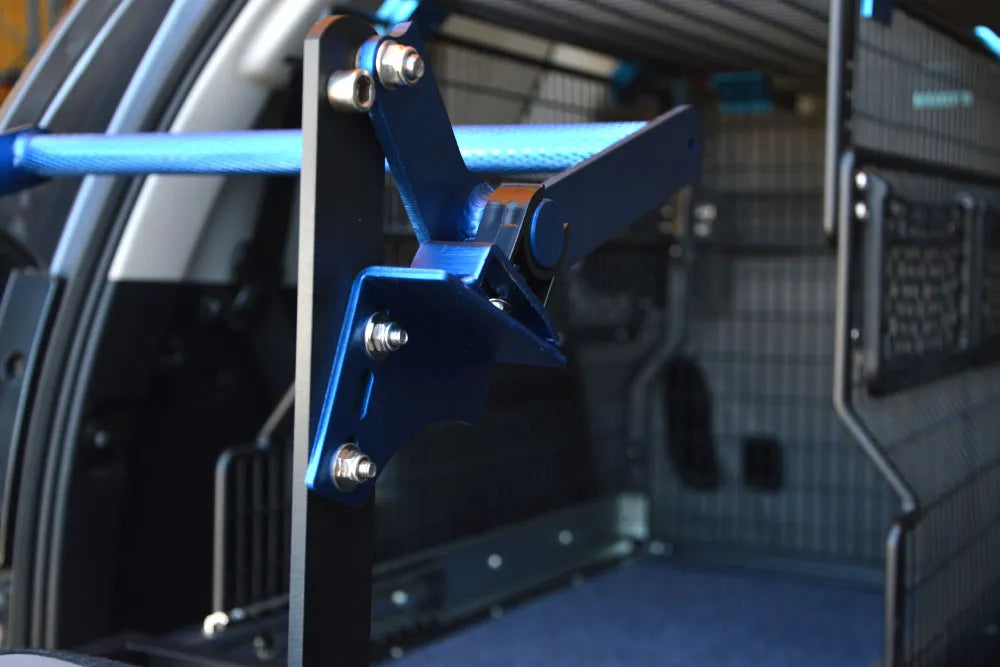

Using the slimline handle, the Drop Slide™ lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle. The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide™ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.

Features:

• Compact size

•  Easy install

• Lock-in and lock-out safety system

• Stainless steel and blue anodised aluminium fittings

• Powder-coated steel frame construction

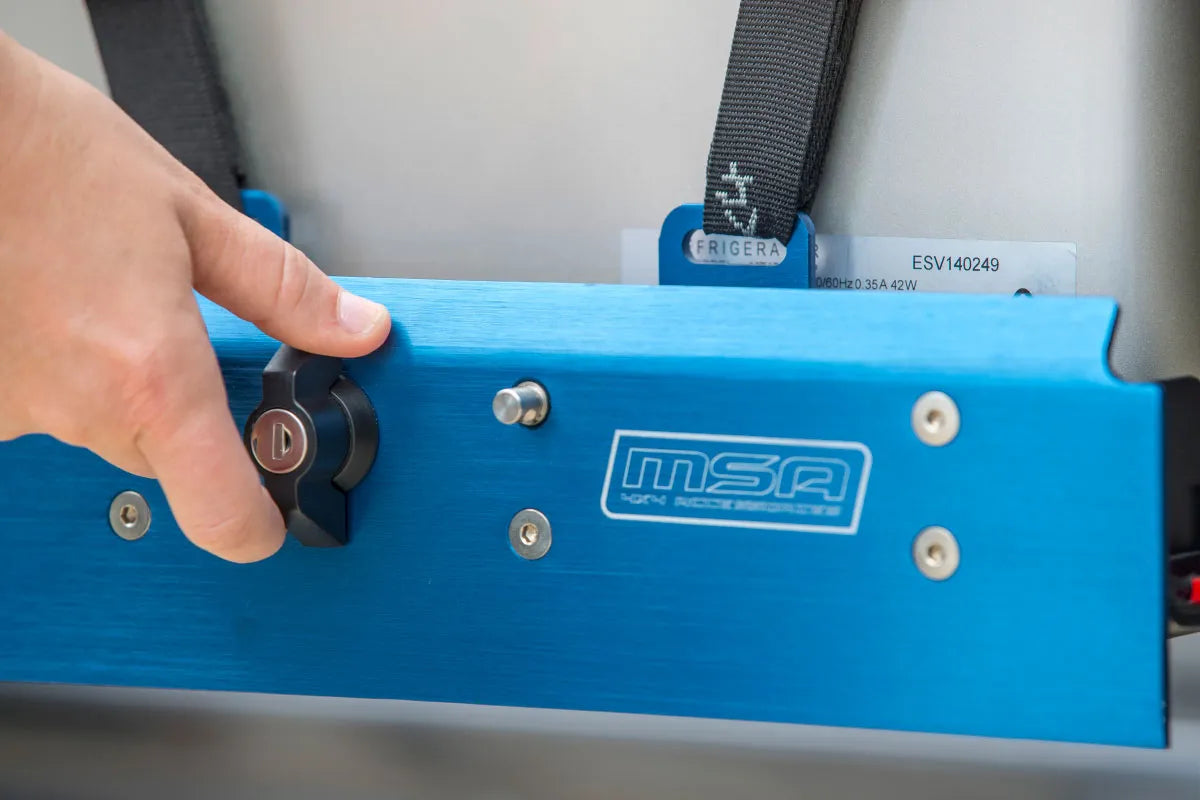

• Travel lock and key

• Anodised blue faceplate

Included:

• Screws for 1/2" Plywood Mounting
• FTD25 4 Piece Fridge Tie-Down Kit

• Pre-drilled tray holes

• MSA 4X4 Lifetime Guarantee

Note:

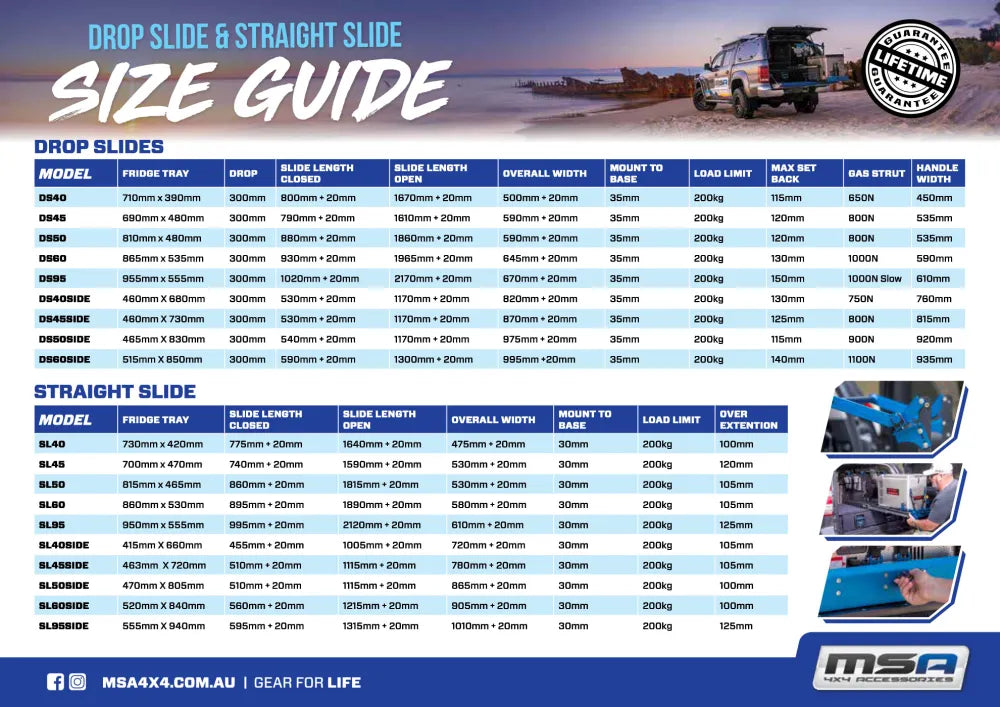

•  5 sizes available to suit a variety of applications
• MSA 4X4 Fridge Barriers available for all models

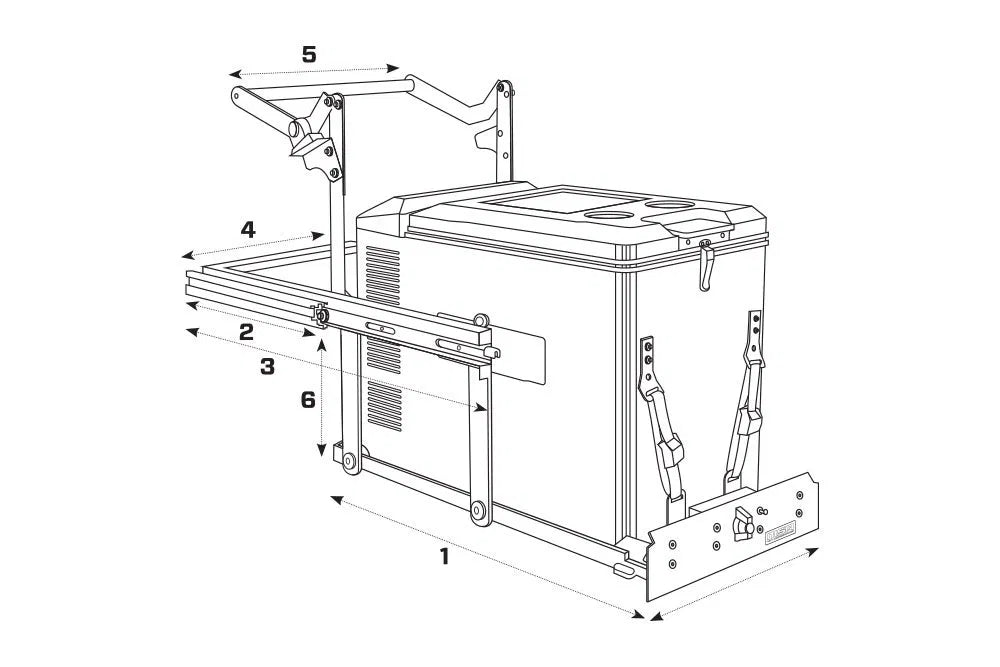

Weight	42kg
Freight Dimensions	1050×740×170
Fridge Tray1	865×535
Slide Length Closed2	930+20
Slide Length Open3	1965+20
Overall Width4	645+20
Handle Width5	590
Drop6	300
Mount to Base	35
Max Set Back	130

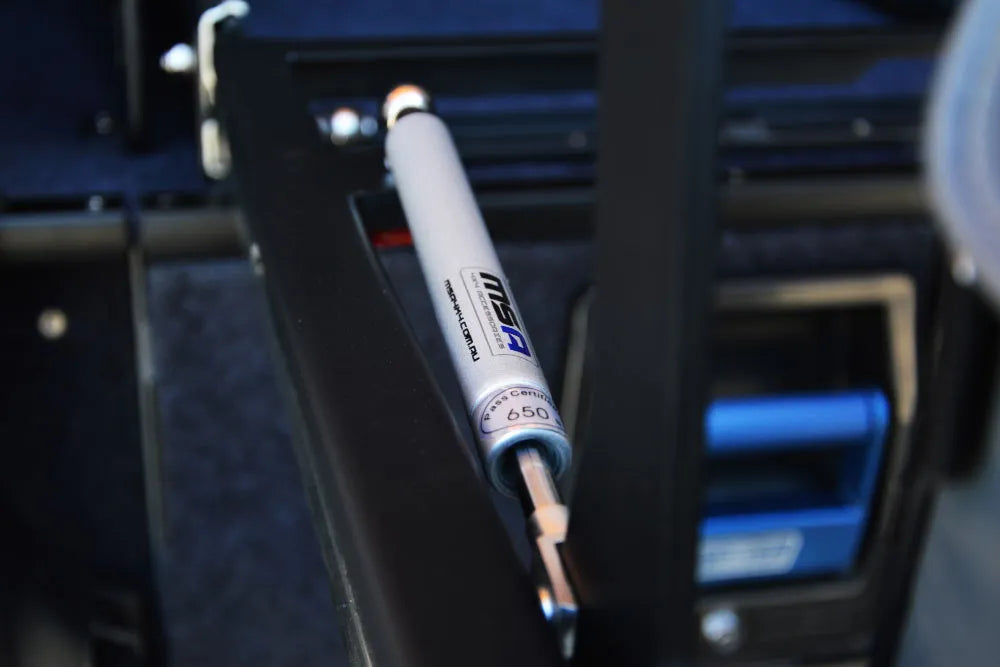

Gas Strut	1000N
(all measurements displayed are in mm)
